Product Specifications
|
Model |
Dimension(mm) |
Power |
Nominal Voltage |
Lumen Output (±5%) |
IP Protection |
IK Protection |
| SH-O7-50 |
Ø230×150 |
50W |
AC100-270V |
8000LM |
IP65 |
IK08 |
| SH-O7-100 |
Ø280×157 |
100W |
AC100-270V |
16000LM |
IP65 |
IK08 |
| SH-O7-150 |
Ø323×167 |
150W |
AC100-270V |
24000LM |
IP65 |
IK08 |
| SH-O7-200 |
Ø323×167 |
200W | AC100-270V | 32000LM | IP65 | IK08 |
Product Features

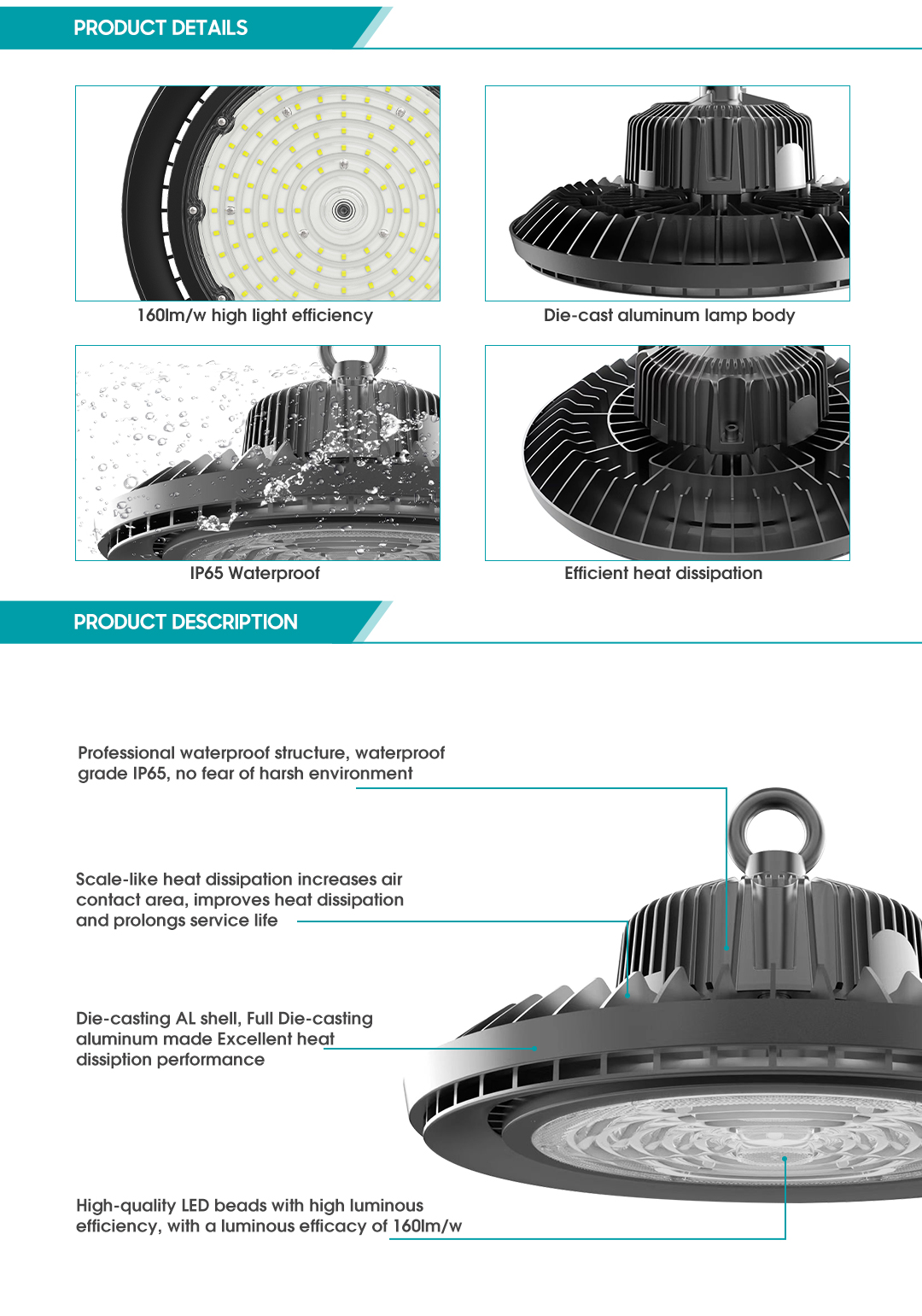

1.SH-O7 mining lamp is made of all-aluminum die-casting, with a solid and textured structure, overall heat dissipation, overall polishing and spray-coated for corrosion resistance, and a new arc design, using air convection to achieve better heat dissipation.
2. The SH-O7 mining lamp has a light effect of up to 160LM/W, with higher brightness. It is designed and manufactured using optical principles, with a light transmittance of >90%. The light angle is 60°~120°, with a super large irradiation angle.
3. Philips or American Pu Rui A-level chips are used, with high brightness, low heat generation, low light decay, pure chip light color, high color rendering index, and better restoration of true colors
4. Reliable quality, safe and secure, IP65 protection level, with moisture-proof, anti-corrosion, and shock-proof functions, can be well protected from lightning strikes and surges, with over-temperature protection and over-voltage protection, better protect your electricity safety.

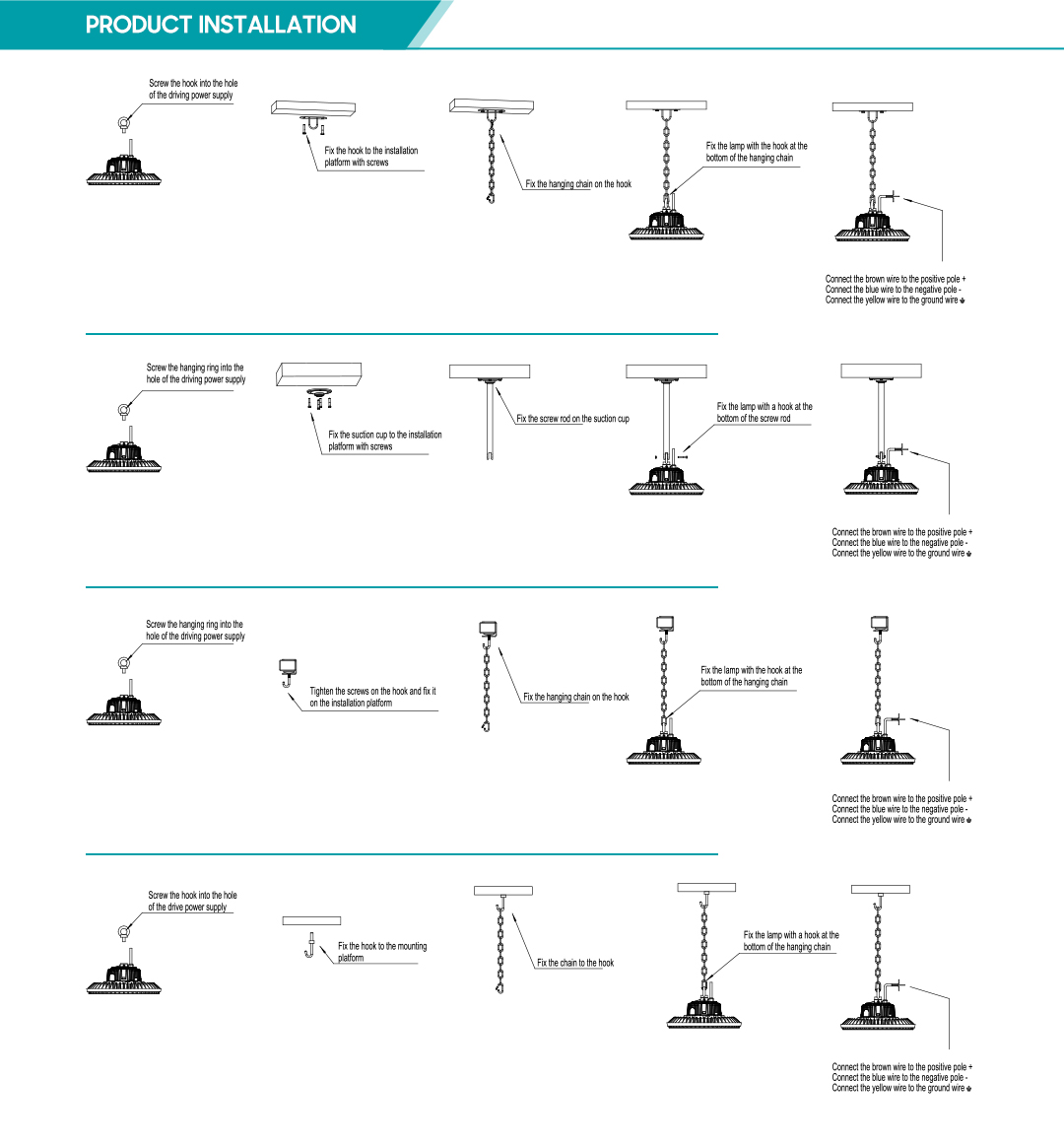

5. A variety of specifications and powers are available, and the application scenarios are wide. It can be equipped with microwave sensors to monitor the human body and realize lighting control. A variety of installation methods, including ring installation, bracket installation, boom installation, and chain installation, can meet the installation needs of different places.
Application scenario
Widely used in workshops, warehouses, elevated industries, logistics center showrooms, highway toll stations, gas stations, supermarkets, gymnasiums, shipyards, farmers' markets and other areas that require lighting.
