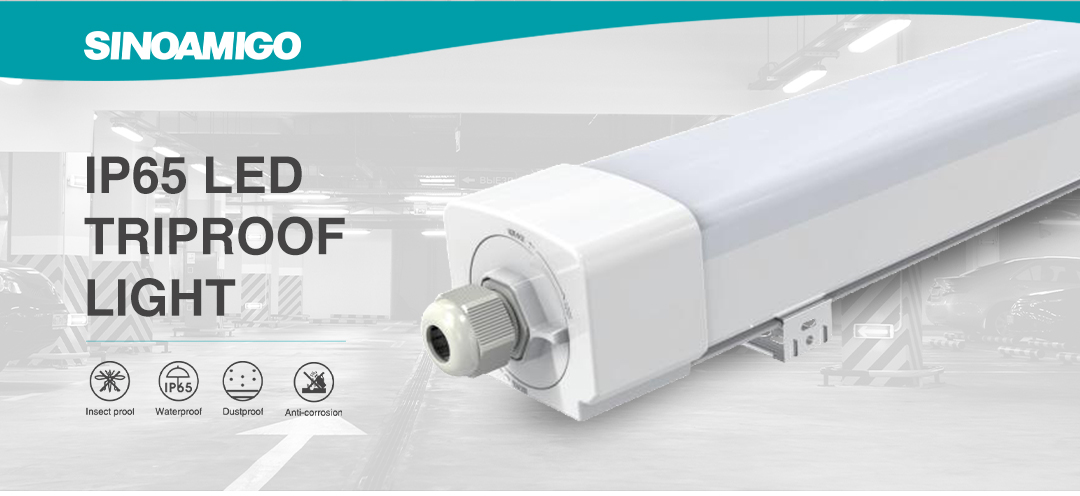

SWA1 IP65 waterproof tri-proof light

SWA1 high-end aluminum-plastic High-Quality Waterproof Ip65 Exporter

Short Description:

Product parameters:

Product model: SWA1

Product material: PC +aluminum material

LED: SMD 2835

Cable Gland: PG13.5

CRI: Ra80

Type of Protection: IP65

Warranty: 5 Years


Product Detail

Product Tags

product features

1. This SWA1 tri-proof light adopts aluminum alloy heat dissipation lamp body, which has the characteristics of good waterproof, high brightness and long life. The lampshade is made of high light-transmitting PC material, the light is soft and eye-friendly, and it is easy to install and use!

2. It is easy to install, connect and splice, and can realize direct waterproof splicing of lamps and lamps. It can be installed on the ceiling or suspended, and the waterproof level is IP65. It can be installed and used in various environments, safe and reliable!

3. The lamp body of this product adopts aluminum alloy heat dissipation lamp body, which greatly enhances the heat dissipation performance of the lamp and prolongs the service life of the lamp. The widened and thickened aluminum substrate is adopted, and the three rows of lamp beads are connected in series, and the luminous brightness is higher. The LED uses 0.5W 2835 lamp beads, and the light efficiency can reach 130lm/w.

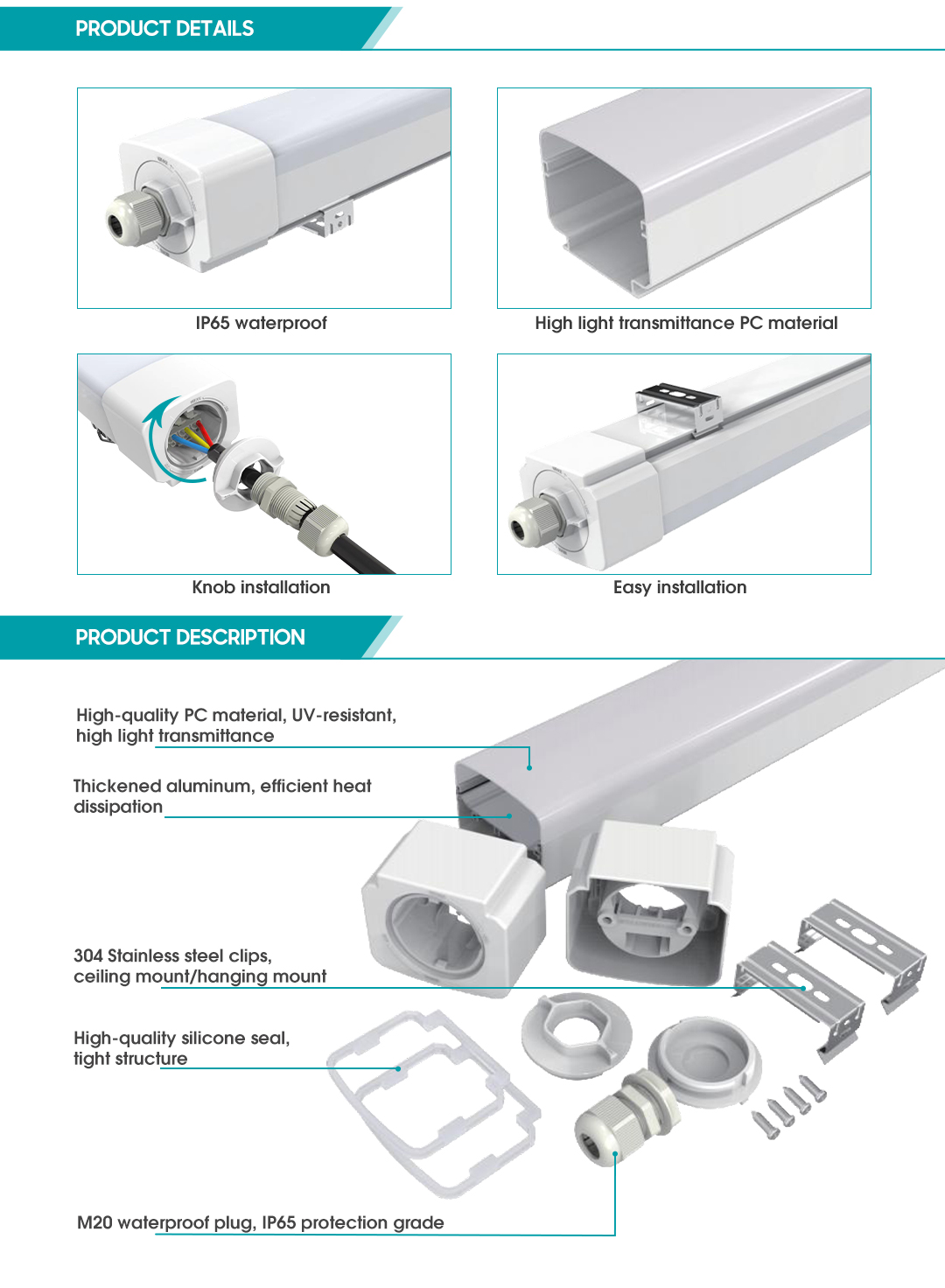

4. The side cover adopts the rotating design, the wiring is convenient and easy to operate, and the built-in three-position quick terminal with ground wire makes the installation and wiring more convenient and quick .

Product Use environment:

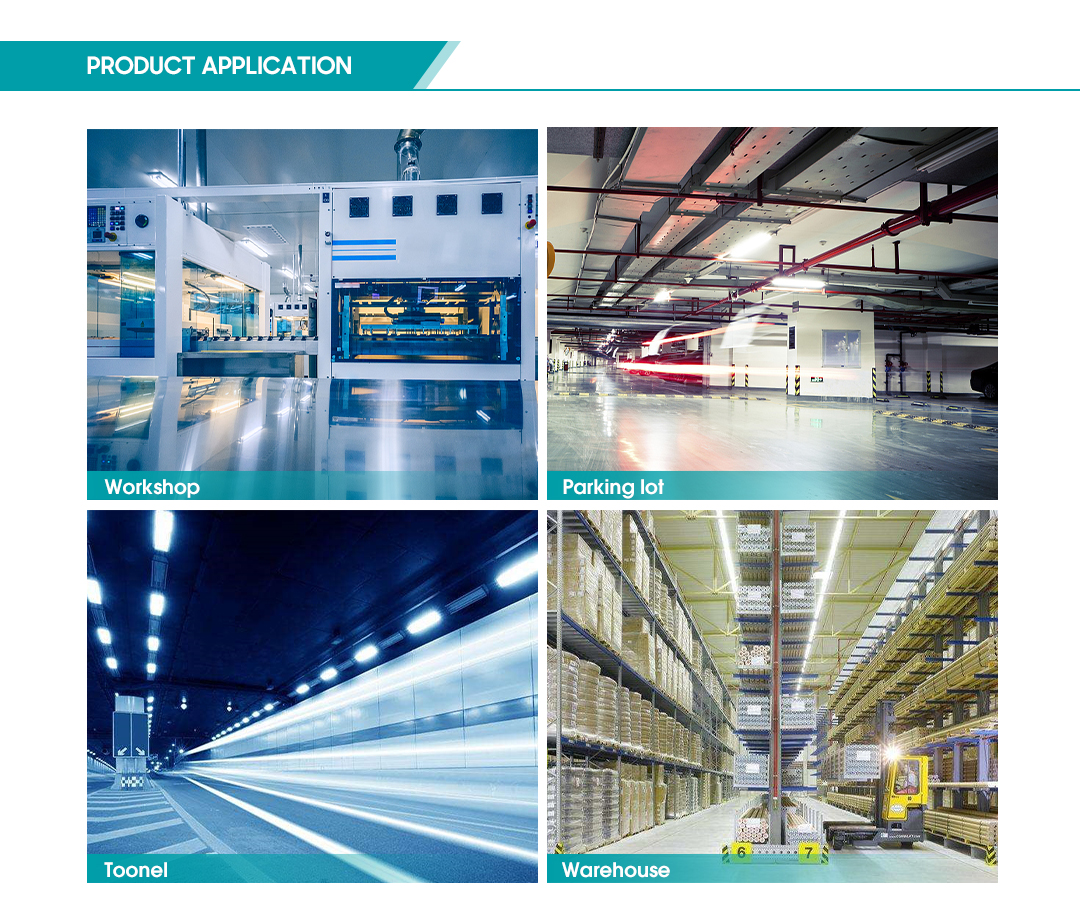

The product has a wide range of application scenarios, suitable for aisle, garage, caring, fire access, indoor and outdoor cold storage lights, and various scenarios.

Product parameters

Model Voltage Dimension(mm) Power LED Chip Luminous flux
SWA10620 220-240V 600x77x68 20W 2835 2600lm
SWA10930 220-240V 900x77x68 30W 2835 3900lm
SWA11240 220-240V 1200x77x68 40W 2835 5200lm
SWA11560 220-240V 1500x77x68 60W 2835 7800lm
