Product parameters
|
Model |
Voltage |
Dimension(mm) |
Power |
Holder |
Number of LED |
|
SW09118 |
100-240V |
665x85x100 |
1x18W T8 |
G13 |
1 Tube |
|
SW09218 |
100-240V |
665x128x100 |
2x18W T8 |
G13 |
2 Tube |
|
SW09136 |
100-240V |
1265x85x100 |
1x36W T8 |
G13 |
1 Tube |
|
SW09236 |
100-240V |
1265x128x100 |
2x36W T8 |
G13 |
2 Tube |
|
SW09158 |
100-240V |
1565x85x100 |
1x58W T8 |
G13 |
1 Tube |
|
SW09258 |
100-240V |
1565x128x100 |
2x58W T8 |
G13 |
2 Tube |
Product Datasheet
Product Features
1. Adopt PC transparent inner stripe lampshade, high light transmittance, no glare, more uniform and softer light. The lampshade is made of high-strength plastic shell, which is not easy to deform, durable, simple and beautiful in design, snap-on installation, convenient and quick to install.
2. We also provide 0.78mm copper clad aluminum wire, light accessories have metal mounting brackets and screws and PG 13.5 cable glands for easy installation.
3. It can be used for LED T8 lamps, and it can be replaced flexibly. You only need to put the lamp tube on the lamp corner and rotate it to install it. lighting needs.
4. Anti-collision level IK08, waterproof level IP65, can resist various harsh environments, and is suitable for various industrial applications that require high-quality impact resistance, dust resistance, insect resistance, and water resistance.
5. Sturdy housing maximizes durability and strength, easy to install and maintain .
6. Our tri-proof light has passed CE and ROHS certification, providing you with a 5-year warranty .
Product Description

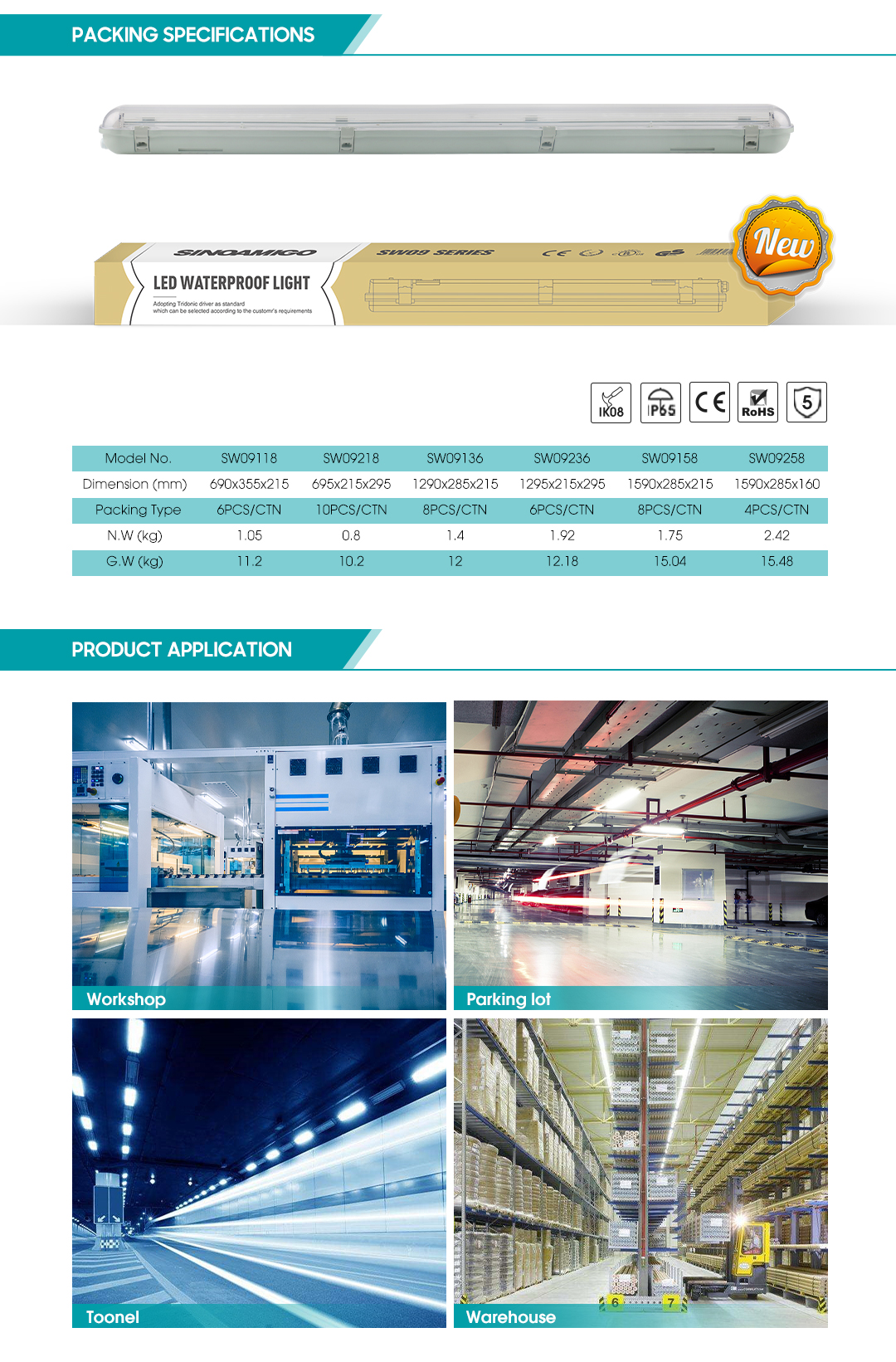

Application Scenario
Parking lots, storage, swimming pools, kitchens, food manufacturing plants, tunnels, bridges, and other occasions that have special requirements for waterproof, dust proof, and corrosion resistance.
Optional
Emergency; Microwave Sensor; Series connection.
Accessories
ABS clips; S.S. clips; M20 cable gland.
