Product parameters
|
Model |
Voltage |
Dimension(mm) |
Power |
Holder |
Number of LED |
|
SW08118 |
100-240V |
670x102x108 |
1x18W T8 |
G13 |
1 Tube |
|
SW08218 |
100-240V |
670x162x108 |
2x18W T8 |
G13 |
2 Tube |
|
SW08136 |
100-240V |
1270x102x108 |
1x36W T8 |
G13 |
1 Tube |
|
SW08236 |
100-240V |
1270x162x108 |
2x36W T8 |
G13 |
2 Tube |
|
SW08158 |
100-240V |
1570x102x108 |
1x58W T8 |
G13 |
1 Tube |
|
SW08258 |
100-240V |
1570x102x108 |
2x58W T8 |
G13 |
2 Tube |
Product Datasheet
Product Features
1. Integrated structure, the lamp body is made of PC (polycarbonate) material, which is economical, durable, safe and environmentally friendly. The white base of cold-rolled steel plate helps to improve the brightness of the lamp tube.

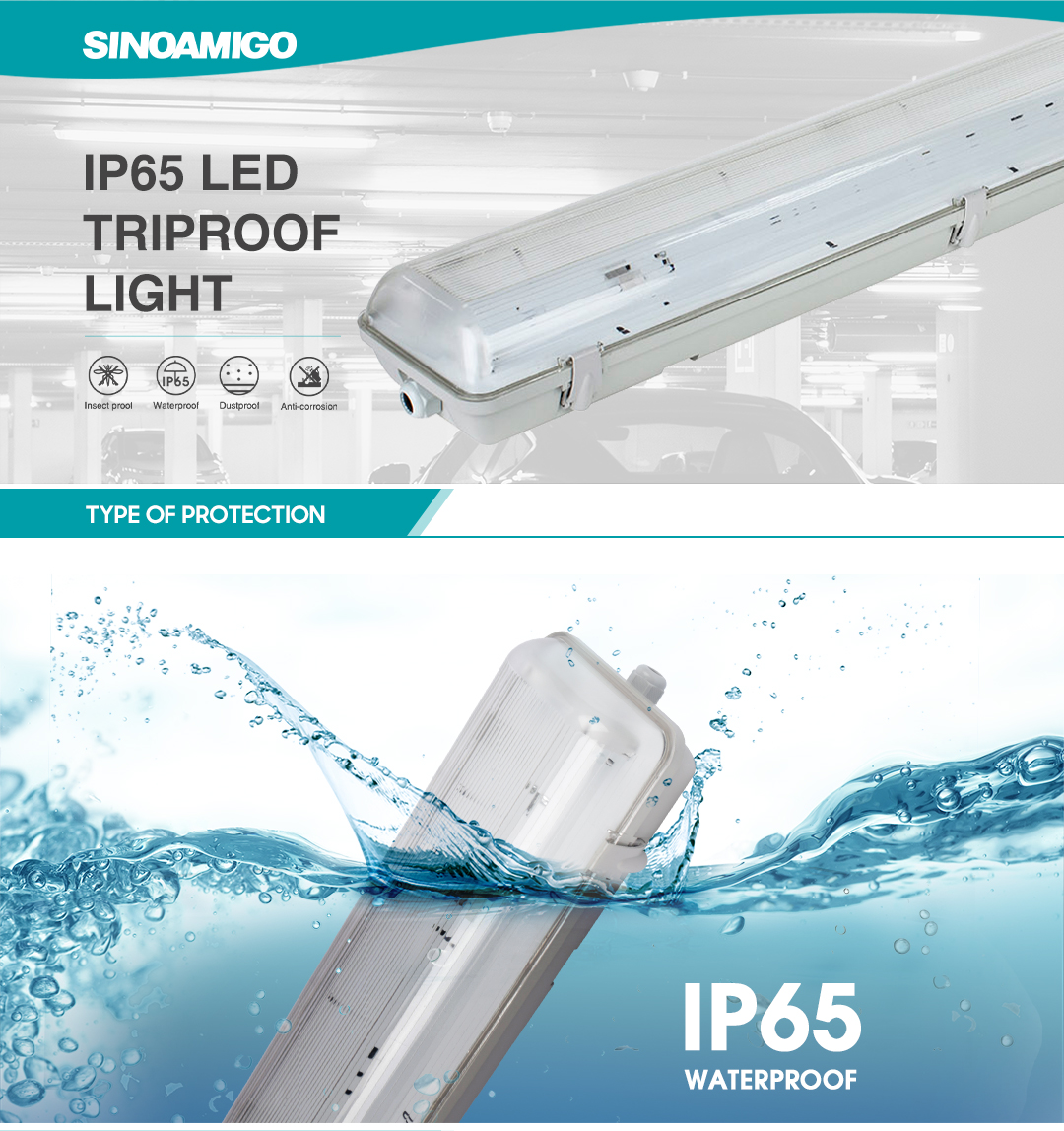

2. The protection level of sw08 tri-proof light is IP65 and IK08, waterproof, dustproof, insect-proof, and protects the core from damage, suitable for more harsh lighting environments.
3. Flexible application, easy maintenance, internal reserved wires, compatible at both ends, double-ended power T8 LED lamps, can be used in series.
4. Waterproof sealing ring at the outlet, external waterproof connector M20, good waterproof effect.
5. The lampshade adopts high-transmittance striped PC lampshade, which has high light transmittance, anti-corrosion and waterproof, not easy to yellow, effectively reduces glare, soft light without glare, bright light without dark corners, and protects your eyes.

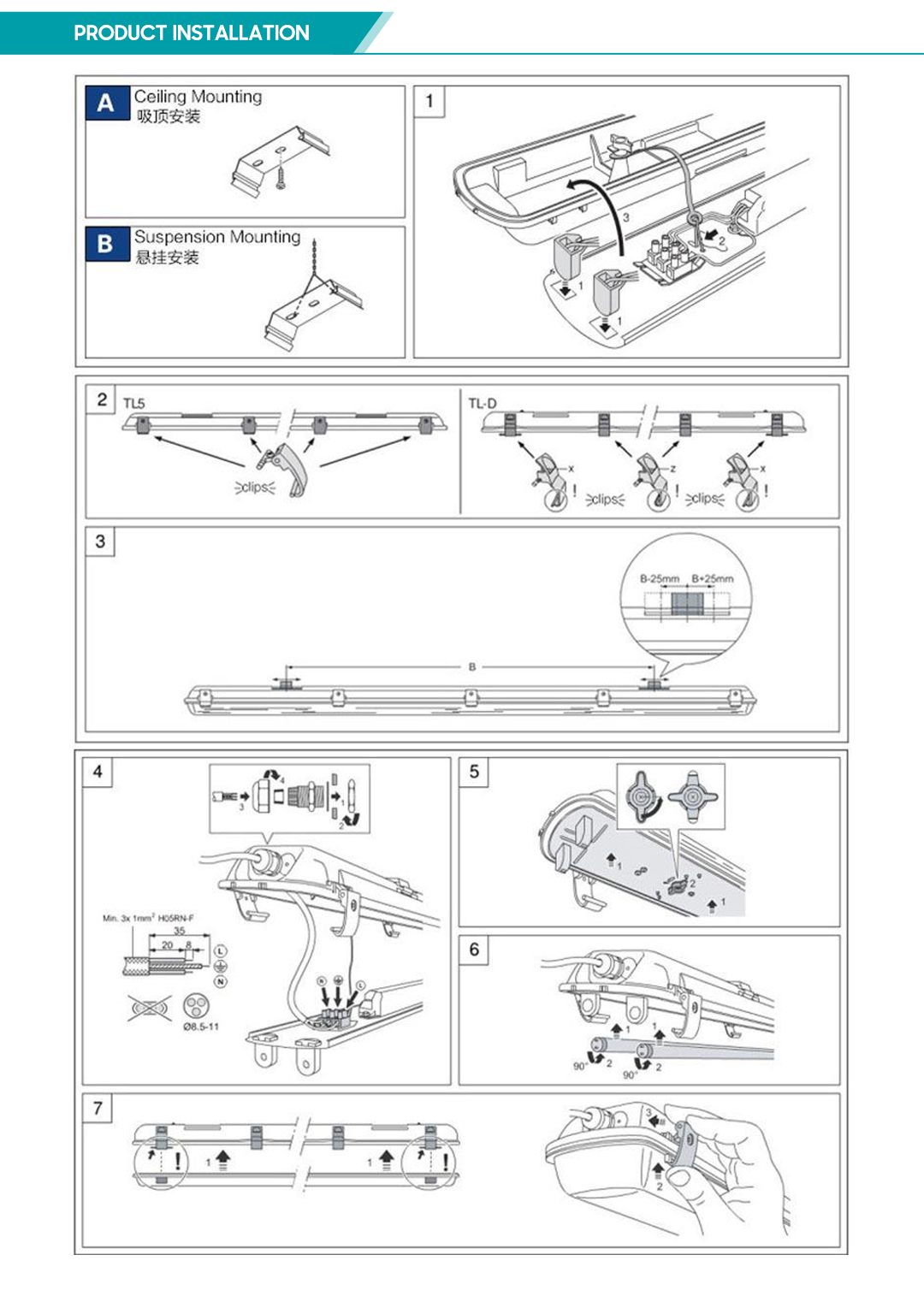

6. There is a metal buckle on the back of the tri-proof light, which is convenient to lock the screw and fix the position. The buckles on both sides can be made of PC or stainless steel. Installation is simple and convenient.
7. There are two styles of single lamp and double lamp for you to choose. We provide you with a five-year warranty, so that you can use it with confidence.
Application Scenario
Indoor parking, underpass, supermarket, school, laboratory, restaurant, etc

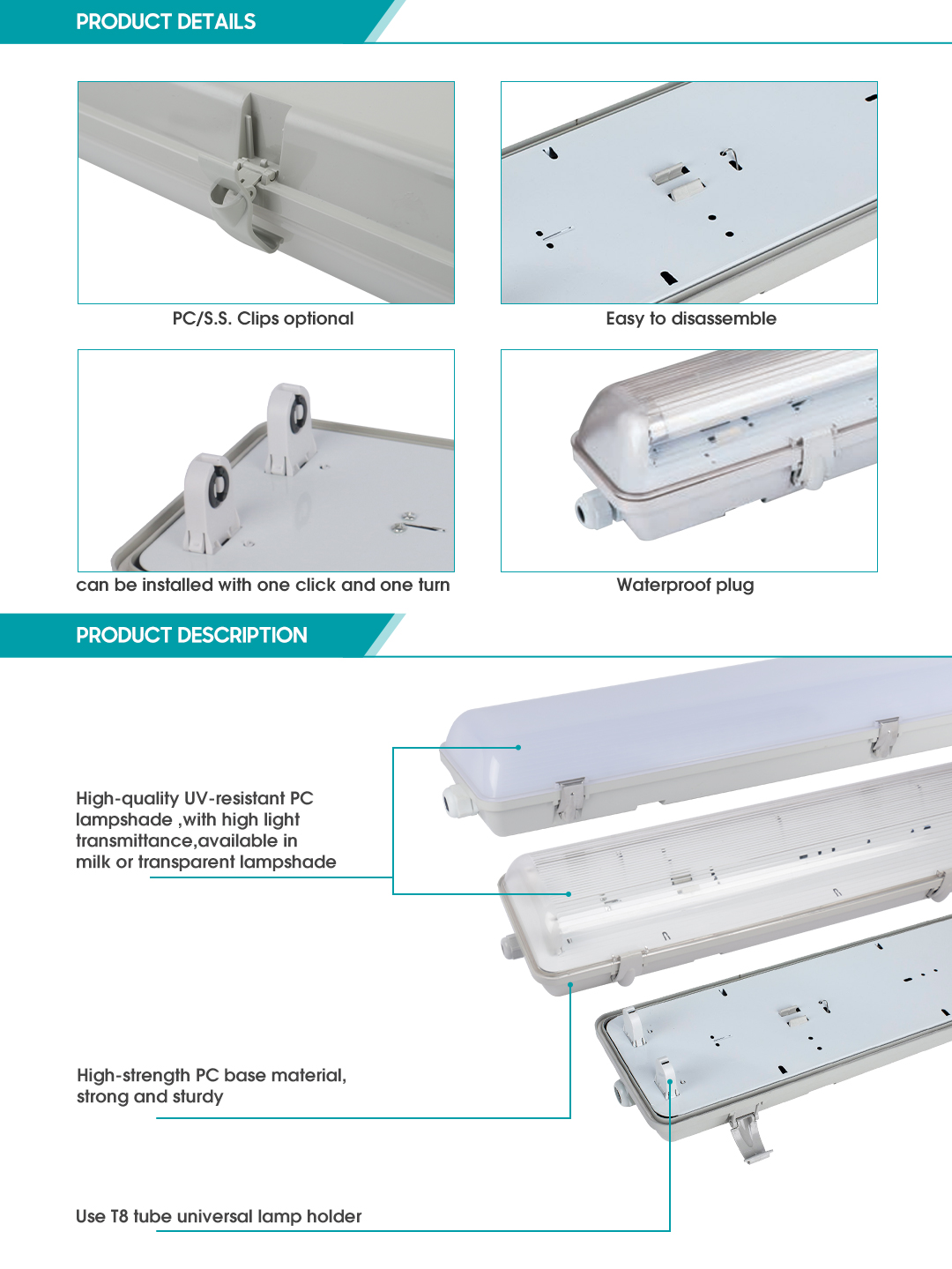

Product Description
