SW02 waterproof tri-proof light

SW02 Stainless Steel IP66 Triproof Exporters waterproof luminaires

Short Description:

Product Name: SW02

Product Material: 304 Stainless Steel base+ Tempered glass cover

Type: T8

Cable Gland: PG13.5

Standards: CE, RoHS

Type of Protection: IP66

Warranty: 5 Years


Product Detail

Product Tags

Product parameters

Model

Voltage

Dimension(mm)

Power

clips

Holder

Number of LED

SW02118 100-240V 700x140x90 1x18W T8 6 G13 1 Tube
SW02218 100-240V 700x190x90 2x18W T8 6 G13 2 Tube
SW02136 100-240V 1300x140x90 1x36W T8 8 G13 1 Tube
SW02236 100-240V 1300x190x90 2x36W T8 8 G13 2 Tube
SW02158 100-240V 1600x140x90 1x58W T8 10 G13 1 Tube
SW02258 100-240V 1600x190x90 2x58W T8 10 G13 2 Tube



Product parameters

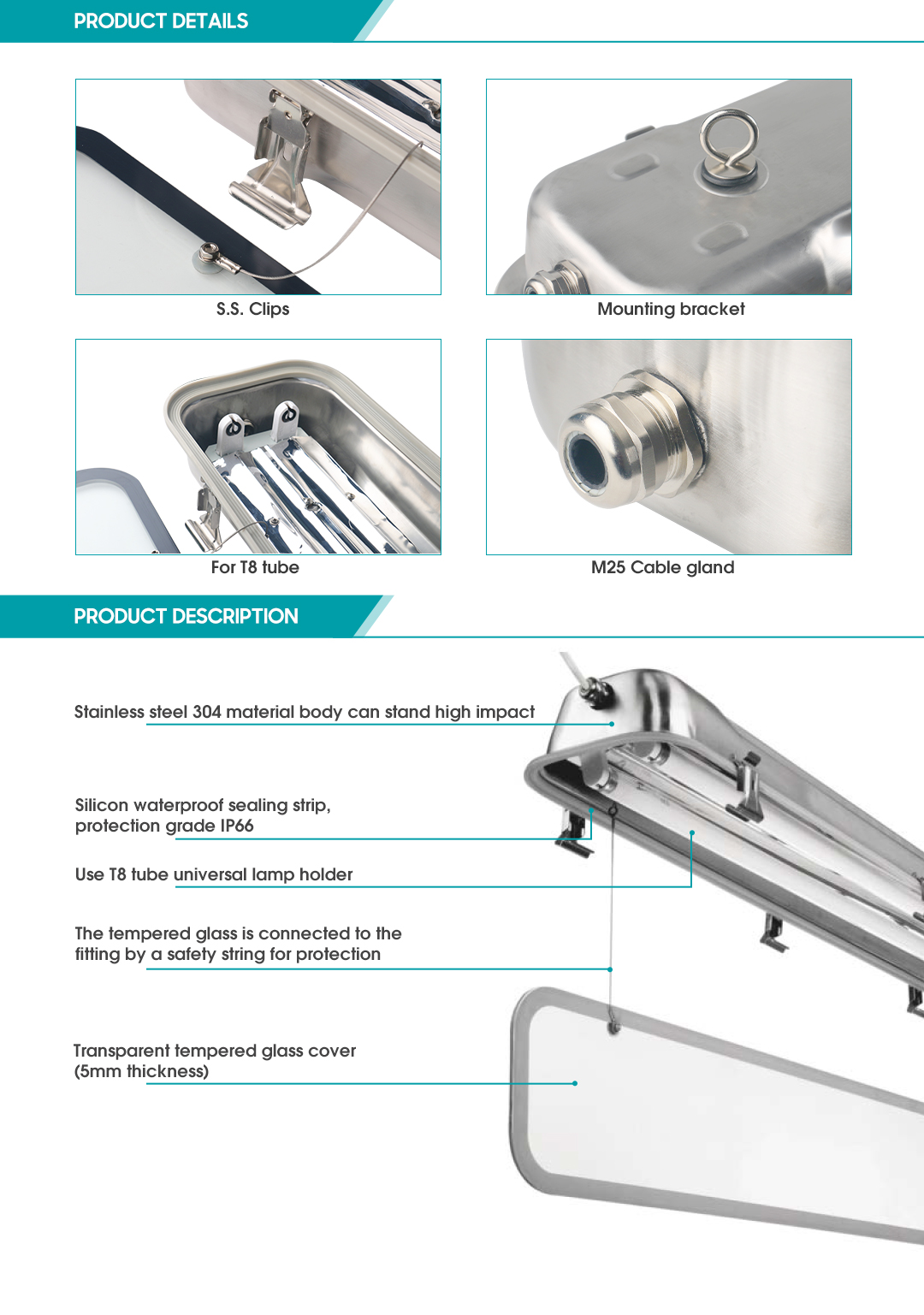

1. SW02 tri-proof lamp body The lamp body is made of 304 stainless steel, which has strong impact resistance, is not easy to rust, and is not easy to deform. Good corrosion resistance, no need to worry about scratches affecting anti-corrosion.



2. SW02 tri-proof Cover has a 5mm thick lampshade made of tempered glass, with strong light transmittance and higher luminous brightness. The light guide plate in the lamp body can reflect light so that the accessory has higher luminous efficiency and lower power consumption, making it more suitable for use in humid and dark environments.



3. Silicone sealing strip to ensure IP66 rating and prevent water vapor and dust from entering the interior of the lamp body. Can be used in various humid and dark environments.



4. Stainless steel clips can protect accessories from impact or flooding. Compared with ordinary tri-proof lights, it has a longer service life and provides a five-year warranty.

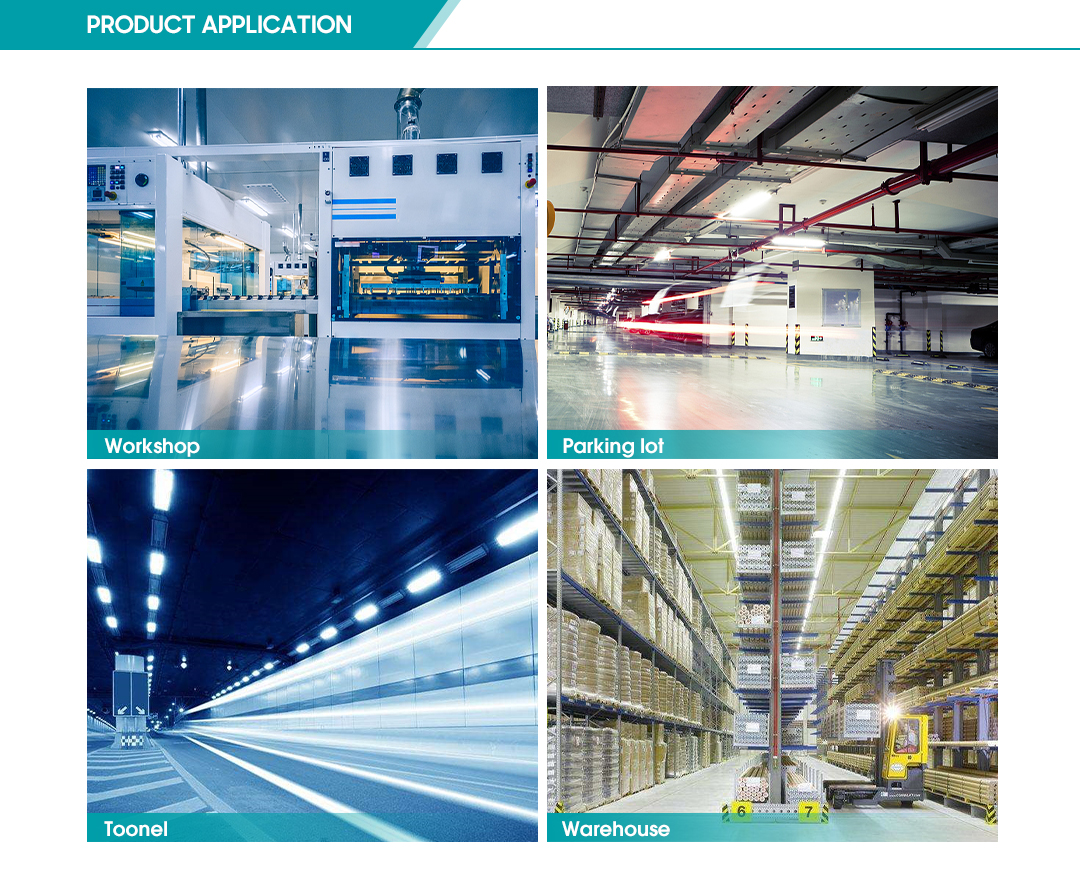

Product Use environment

Widely used in petroleum, chemical, wharf, food, pharmaceutical, and other factories and enterprises. It is mainly used as factory lighting, especially for highly corrosive workshop lighting.
