Product parameters
Product model: SW-V
Product material: PC material
LED: SMD 2835
Cable Gland: PG13.5
CRI: Ra80
Type of Protection: IP65
Warranty: 3 Years
Product Features

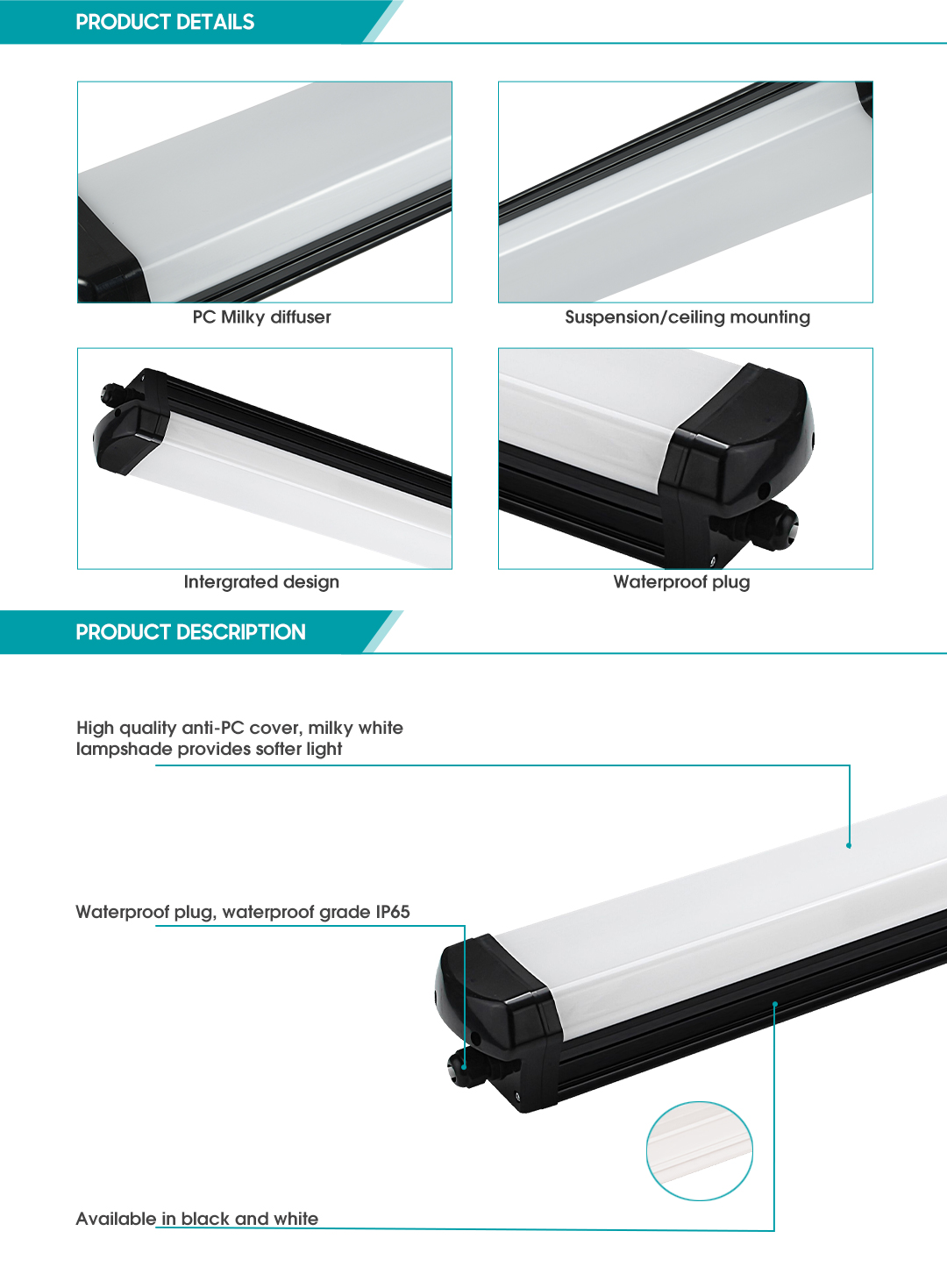

1. SINOAMIGO series SW-V LED tri-proof lamp adopts high light transmittance PC lampshade, large luminous area, uniform and soft light, no glare, no ghosting, no vignetting, and it is not easy to yellow after long-term use, effectively avoiding construction workers Discomfort and fatigue.
2. The SW-V tri-proof lamp is made of anti-ultraviolet PC material, which can resist high temperature and low temperature -20°C to 45°C. It is durable and not easy to deform and age. Combined with high-quality sealant to achieve IP65 protection performance, it is guaranteed to resist the intrusion of water and dust, and can also provide excellent lighting effects under humid and dusty conditions.
3. This tri-proof lamp uses high-brightness lamp beads, the photoelectric conversion rate reaches 100lm/w, and the average service life is as long as 50,000 hours, which saves the trouble and inconvenience of frequent replacement of bulbs. High lumen output is more energy-efficient and environmentally friendly. High refractive index, high brightness, high chromaticity, natural without distortion, large luminous angle, bring natural light to dark environment.
4. Flexible and convenient installation, equipped with stainless steel mounting brackets, a variety of installation methods, you can choose ceiling installation or suction ceiling installation according to your needs, suitable for the lighting needs of different work sites.
5. We provide you with a three-year warranty.
Product application scenarios

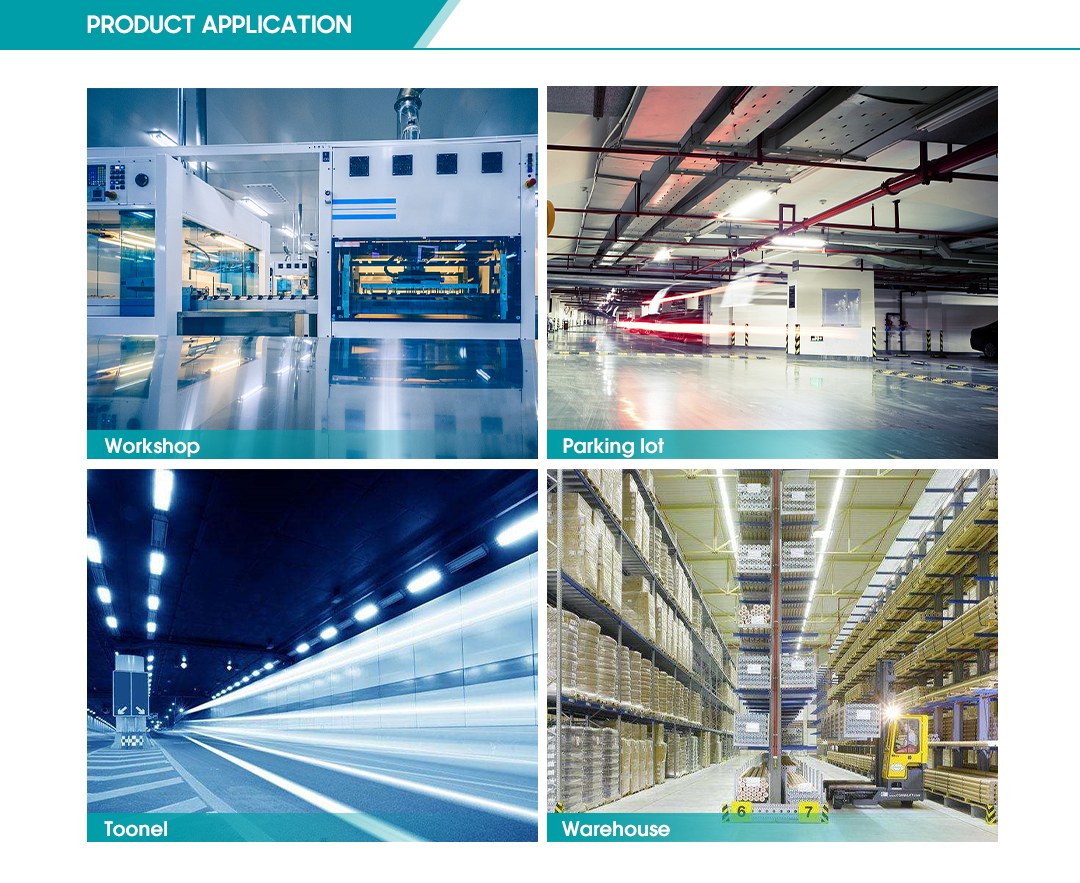

This LED tri-proof light is mainly used for lighting needs in offices, factories, workshops, stadiums, underground parking lots, and other places.
Product parameters
Model |
Voltage |
Dimension(mm) |
Power |
LED Chip |
Luminous flux |
SW-V20 |
100-240V |
681x101x83 |
20W |
2835 |
2000lm |
SW-V40 |
100-240V |
1281x101x83 |
40W |
2835 |
4000lm |
SW-V55 |
100-240V |
1581x101x83 |
55W |
2835 |
5500lm |
