Product parameters
Product model: SW-E
Product material: PC/ PC material
LED: SMD 2835
Cable Gland: PG13.5
CRI: Ra80
Type of Protection: IP65
Warranty: 5 Years

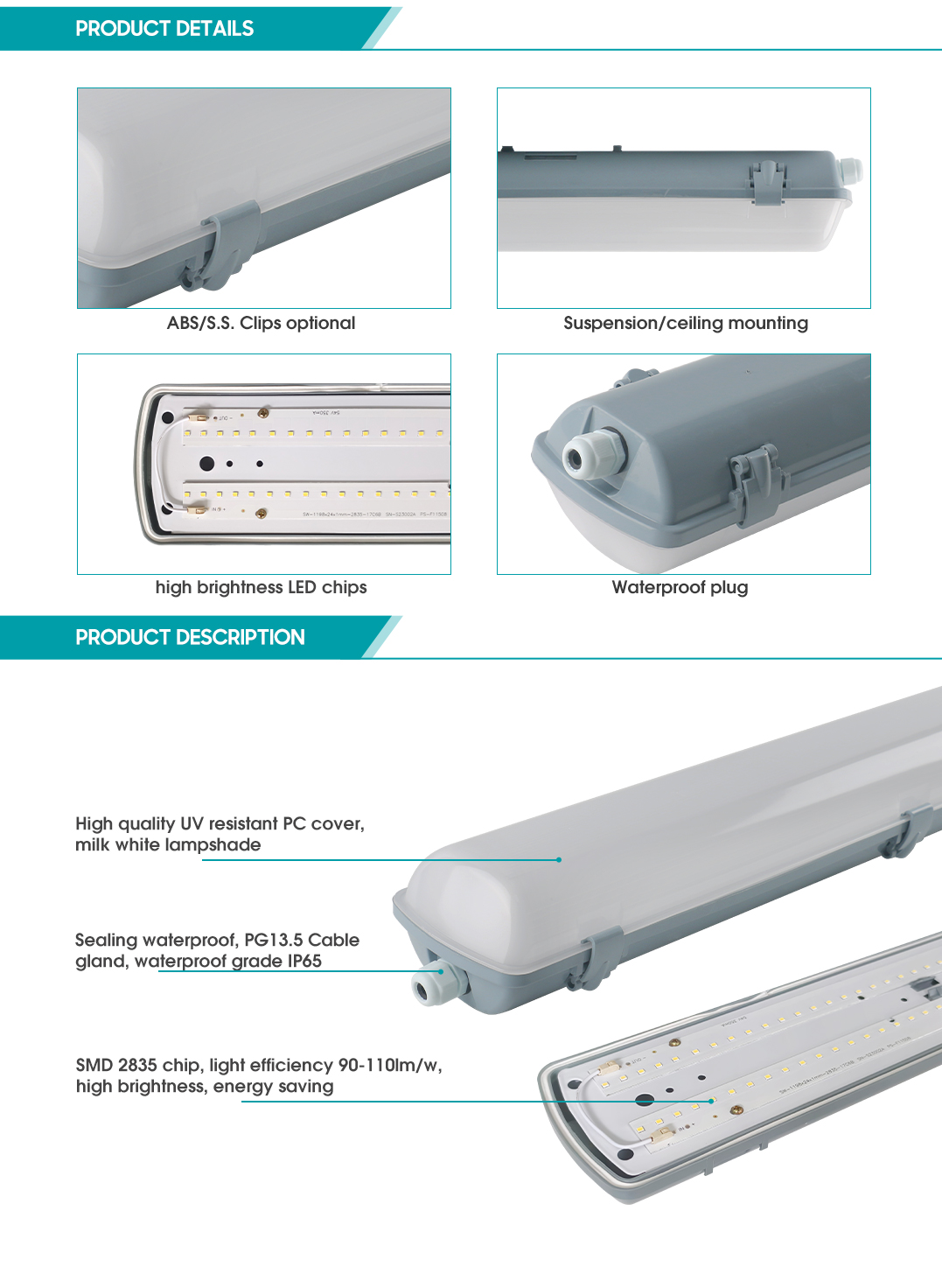

Product Features
1. SW-E waterproof LED tri-proof light is made of PC+ PC high light transmittance engineering plastic material, which is resistant to high temperature, corrosion and ultraviolet rays. Compared with other similar products, the price is lower and it is suitable for various scenarios.
2. This tri-proof light uses a milky white lampshade, which emits even, soft and non-glaring light. The color rendering index is RA80, which can achieve good optical effects.

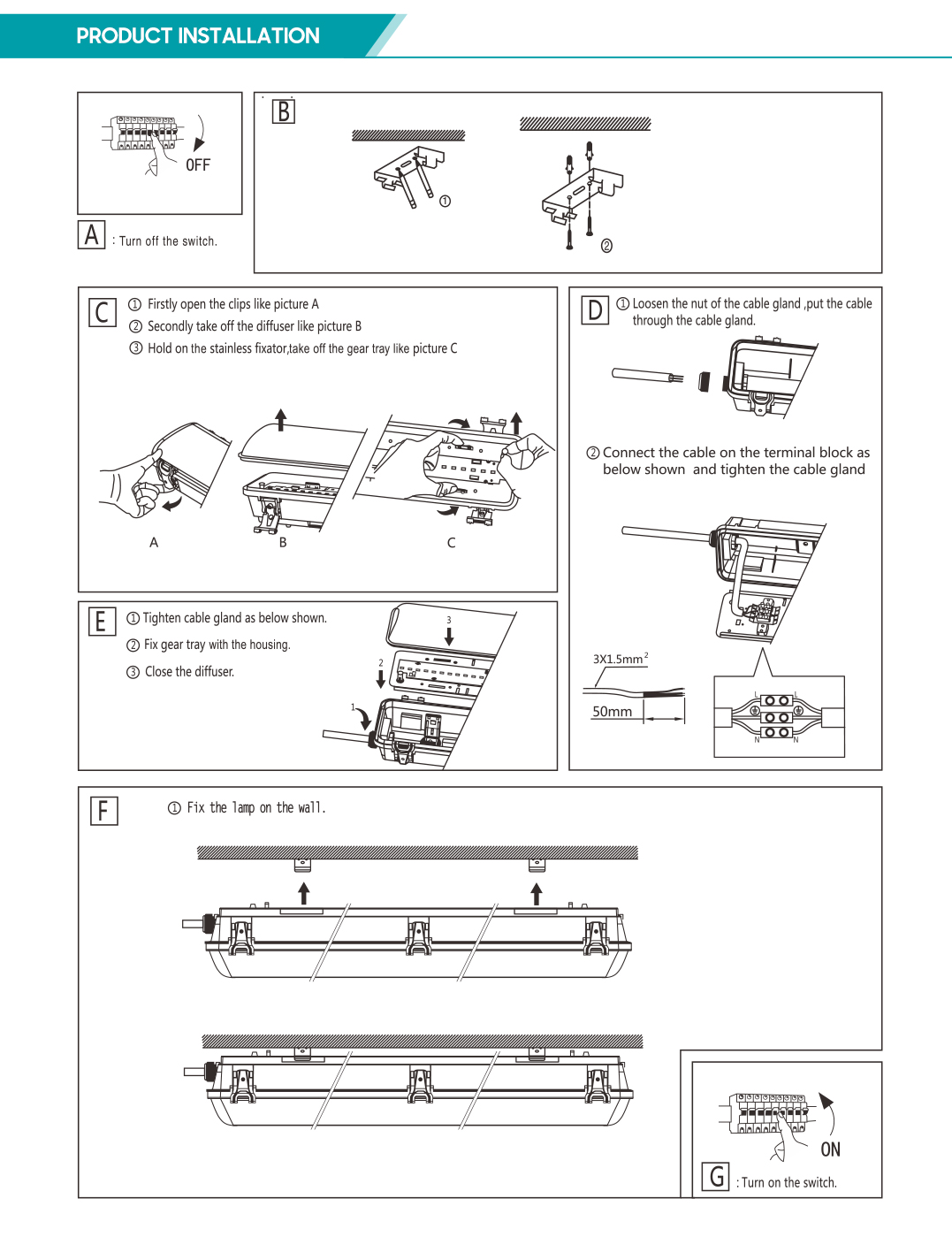

3. The installation is convenient and fast. The SW-E tri-proof light supports surface installation and suspension installation. There is a stainless steel mounting bracket on the back, which is easier to install and fix.
4. High-brightness SMD LED is the illuminant, high thermal conductivity aluminum substrate/PCB board is the substrate, the power supply is a built-in constant voltage and constant current source, the luminous efficiency reaches 100lm/w, more light output, brighter and more energy-saving, compared with traditional The waterproof bracket saves energy by 50%.
5. Waterproof and dustproof IP65, with waterproof, dustproof and anti-corrosion functions, it is suitable for various humid and harsh environments.
6. Reliable quality, a lifespan of up to 50,000 hours, a wider working environment -20°C-+50°C, perfect for various industrial and semi-outdoor application environments, and we provide you with a five-year warranty .
Application scenario
It is often used in some public places with humid environment, such as industrial land, parking lot, factory swimming pool, kitchen, chemical plant, production workshop, workbench, etc.
Scope of application
Model |
Voltage |
Dimension(mm) |
Power |
LED Chip |
CRI |
Luminous flux |
SW-E120 |
200-240V |
656x80x90 |
20W |
2835 |
>80 |
2000lm |
SW-E140 |
200-240V |
1260x80x90 |
40W |
2835 |
>80 |
4000lm |
SW-E160 |
200-240V |
1560x80x90 |
60W |
2835 |
>80 |
6000lm |
SW-E220 | 200-240V | 656x115x90 | 20W | 2835 | >80 | 2000lm |
SW-E240 | 200-240V | 1260x115x90 | 40W | 2835 | >80 | 4000lm |
SW-E260 | 200-240V | 1565x115x90 | 60W | 2835 | >80 | 6000lm |
