Product parameters
Product model: SW-B
Product material: PC/PC material
LED: Epistar 2835
Cable Gland: PG13.5
CRI: Ra80
Type of Protection: IP65
Warranty: 5 Years
Features

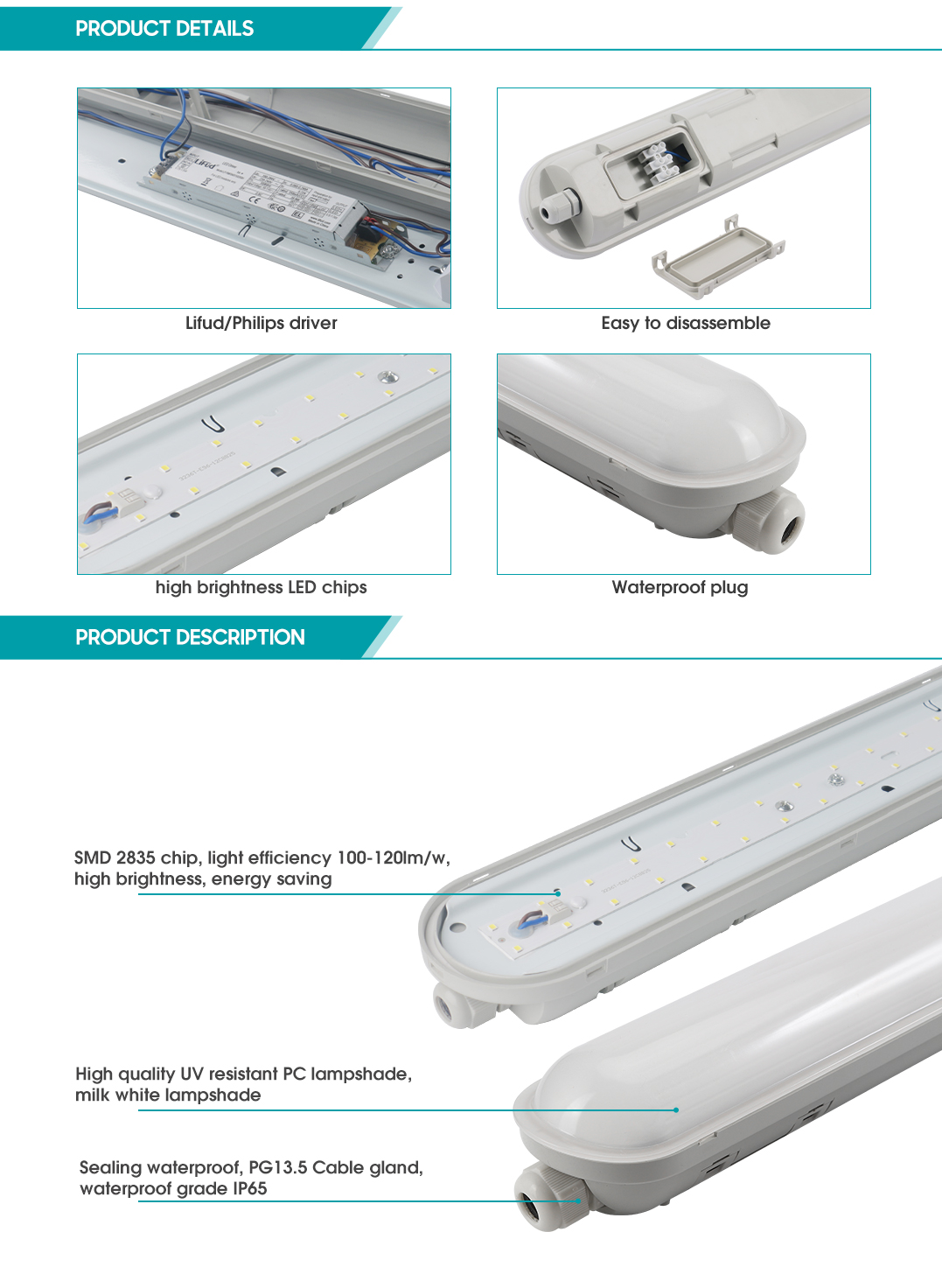

1. The lamp body and lampshade of SW-B tri-proof lamp are made of polycarbonate (PC) material, which is anti-ultraviolet, high temperature resistant and durable. The lampshade is made of frosted structure, the light is soft and uniform, low glare, friendly to the eyes, and will not turn yellow after long-term use.
2. Complete accessories, convenient installation, built-in quick terminal, convenient and fast wiring.
3. Professional light effect design with high-quality LED chips, light effect 110lm/w, system lighting up to 5940lm, higher brightness, more economical and environmentally friendly than other lighting fixtures.
4. The whole body has no buckle accessories design. The whole body accessories only need to be squeezed into the buckle to complete the installation. It is easy to disassemble and assemble.

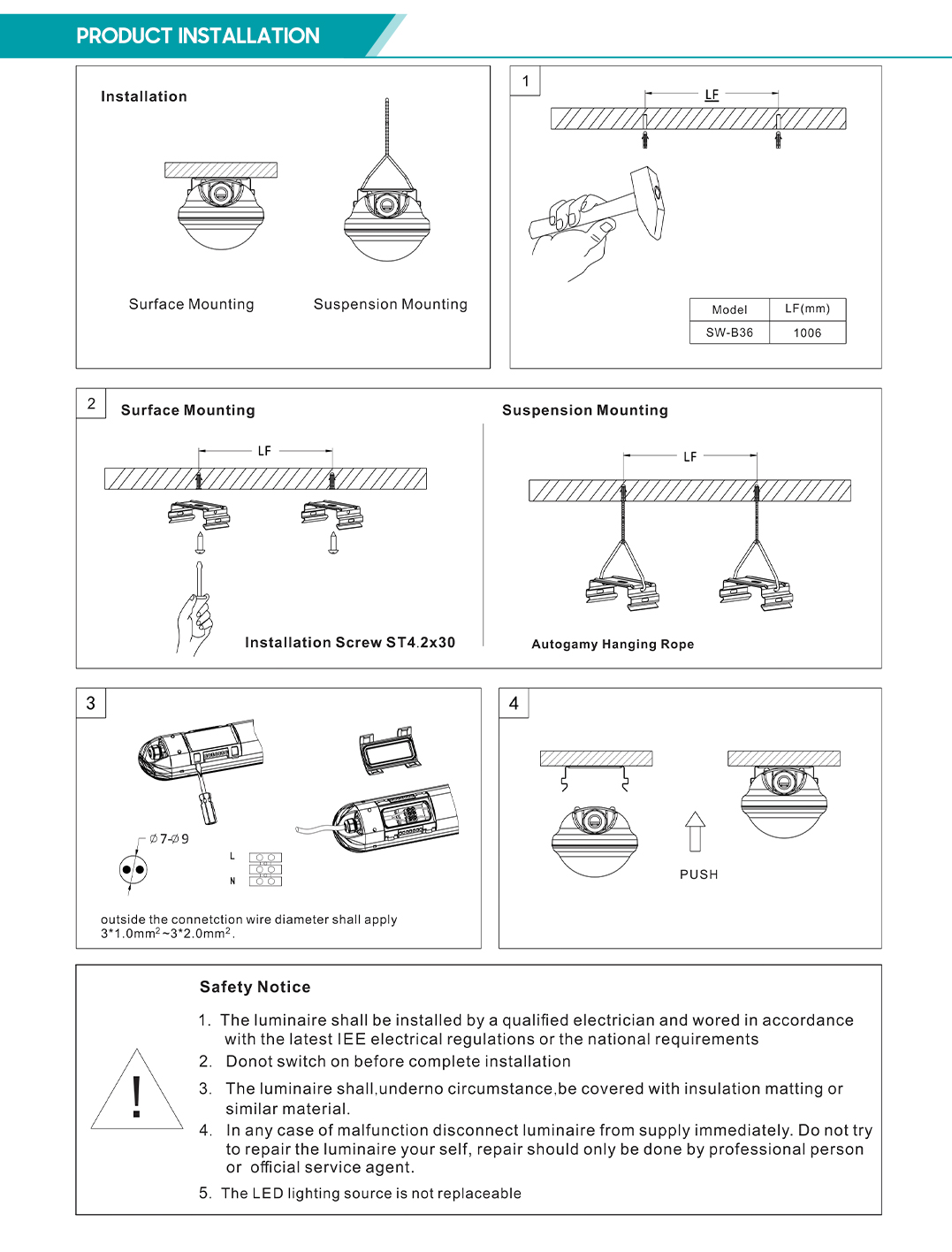

5. It can be installed on the ceiling or on the ceiling, and the two lights can be used in series, which is easy to install
6. The service life can reach 50000h, and the warranty is provided for 5 years, so that you can use it with confidence.
7. High efficiency and energy saving, CE certification.
8. The accessories are seamlessly connected after assembly, with good protection performance. All plastic materials can achieve the effect of moisture-proof, dust-proof and corrosion-proof. The protection level is IP65 and the anti-collision level IK08, suitable for various humid industrial environments.
Suitable places
overpass, factory, pharmaceutical factory and food factory. The kitchen. Bathroom and sauna, pedestrian corridor. Tunnels and underground factories, car parks, waiting platforms and other public outdoor areas.
Product Parameters
Model |
Voltage |
Dimension(mm) |
Power |
LED Chip |
Number of LED |
Luminous flux |
SW-B18 |
100-240V |
631x86x70 |
18W |
2835 |
39 |
1980lm |
SW-B36 |
100-240V |
1231x86x70 |
36W |
2835 |
78 |
3960lm |
SW-B54 |
100-240V |
1531x86x70 |
54W |
2835 |
108 |
5940lm |
