Product Specificationso
Model |
Dimension(mm) |
Power |
Solar Panel |
Battery Capacity |
Charging Time |
Lighting Time |
SO-Y390 |
479×235×57 |
90W |
6V 12W |
3.2V 10000mAH |
6H |
12H |
SO-Y3120 |
618×256×57 |
120W |
6V 15W |
3.2V 15000mAH |
6H |
12H |
SO-Y3200 |
720×256×57 |
200W |
6V 18W |
3.2V 20000mAH |
6H |
12H |
Product Datasheet
product features
1 . Solar charging, zero electricity bill throughout the year, energy saving, green and environmental protection .
2 . Light control + human body induction + remote control three control modes, intelligent lighting, easy to operate and convenient to apply.
3. Polycrystalline silicon solar panels, fast charging, can be fully charged in 5-6 hours under the sun, and can also be charged in rainy days.
4 . Built-in high-performance and large-capacity lithium battery, PWM charging technology, long lighting time, 3-7 days of battery life when fully charged, good performance, long service life ,
5 . The shell is made of ABS engineering plastics, which has strong pressure resistance, corrosion resistance and ultraviolet resistance, and can endure the harsh environment of the sea or high temperature and humidity .

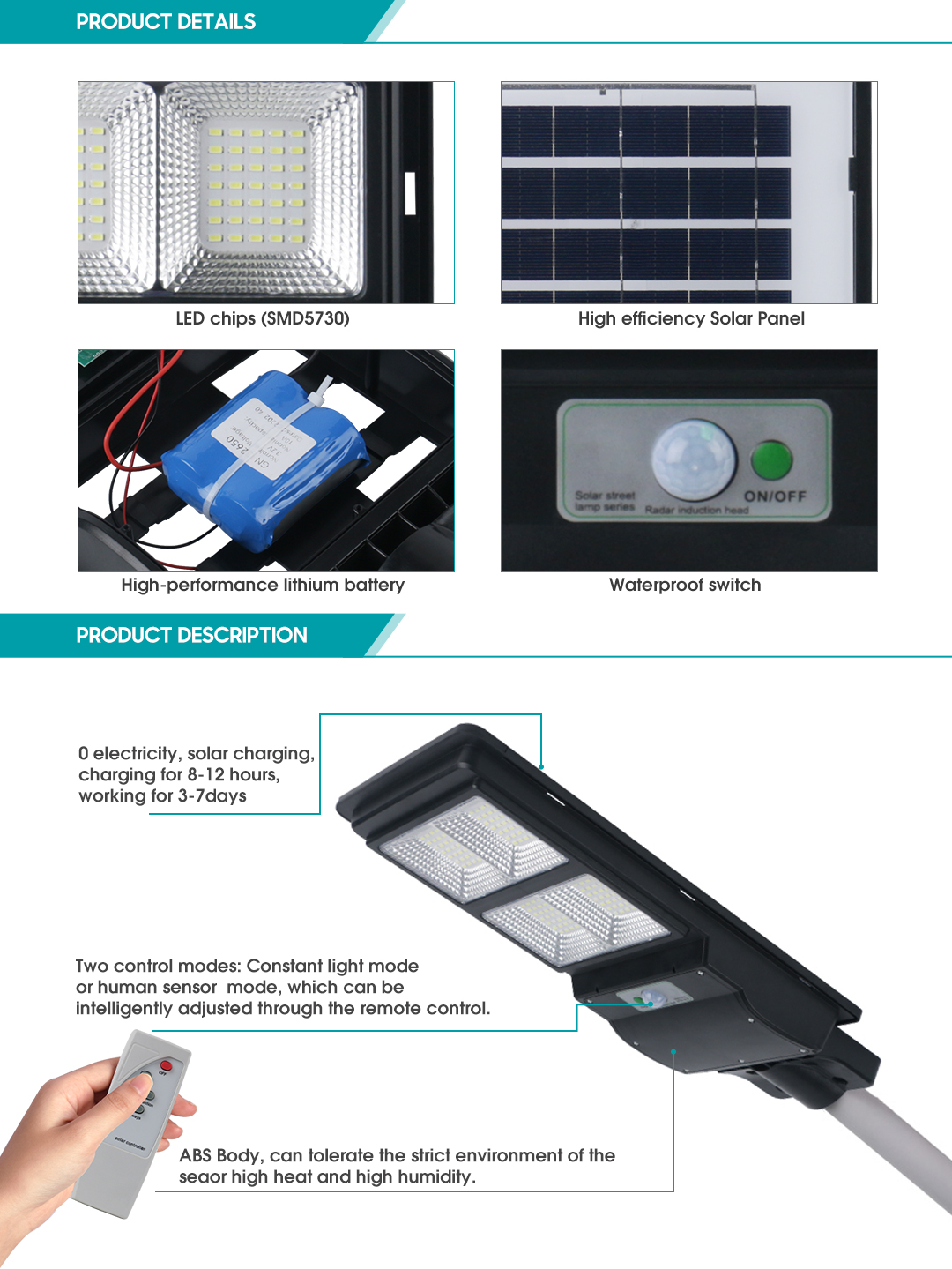

6 . High-brightness LED lamp beads, using SMD5730 chip, LED light source with high lumen output, good color difference, uniform light output ,

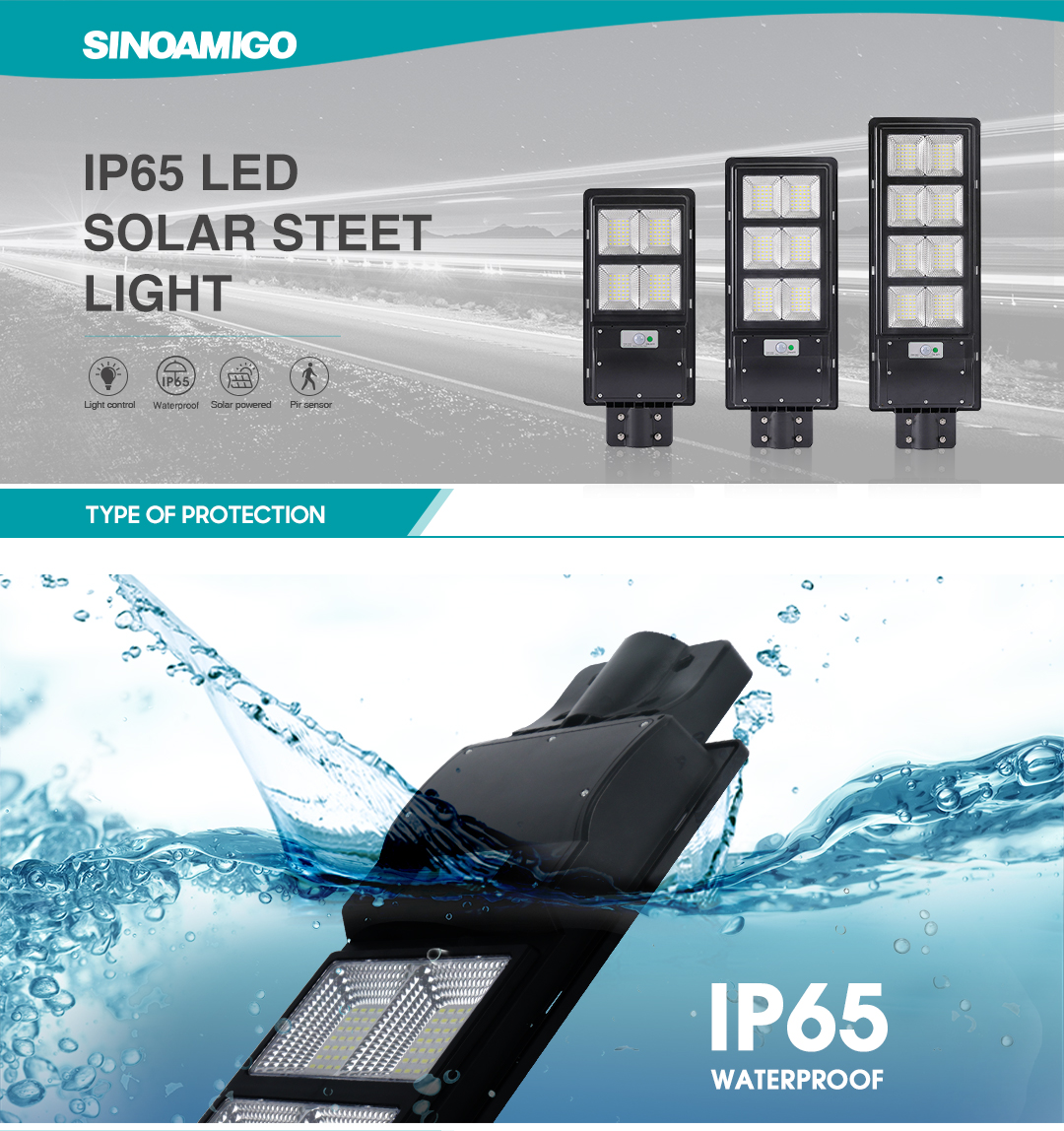

7 . Waterproof grade IP65, moisture-proof, insect-proof, dust-proof, don't worry about all kinds of bad weathe r.
8 . No need for wiring installation, easy to install, and meet the installation needs of various outdoor lamps, such as installation on walls, light poles, and cement poles .
9. Two control modes: Constant light mode,Always on without manual induction;
Motion sensor mode, light up when someone arrives, leave the brightness down to 30%
Application scenario
garden, courtyard, road
