Product Specifications
|
Model |
Dimension(mm) |
Power |
LED Chip |
Number of LED |
Luninous flux |
|
SM101280 |
128×128 |
12W |
2835 |
24 |
1200lm |
|
SM102080 |
178×178 |
20W |
2835 |
48 |
2000lm |
|
SM103080 |
238×238 |
30W |
2835 |
125 |
3000lm |

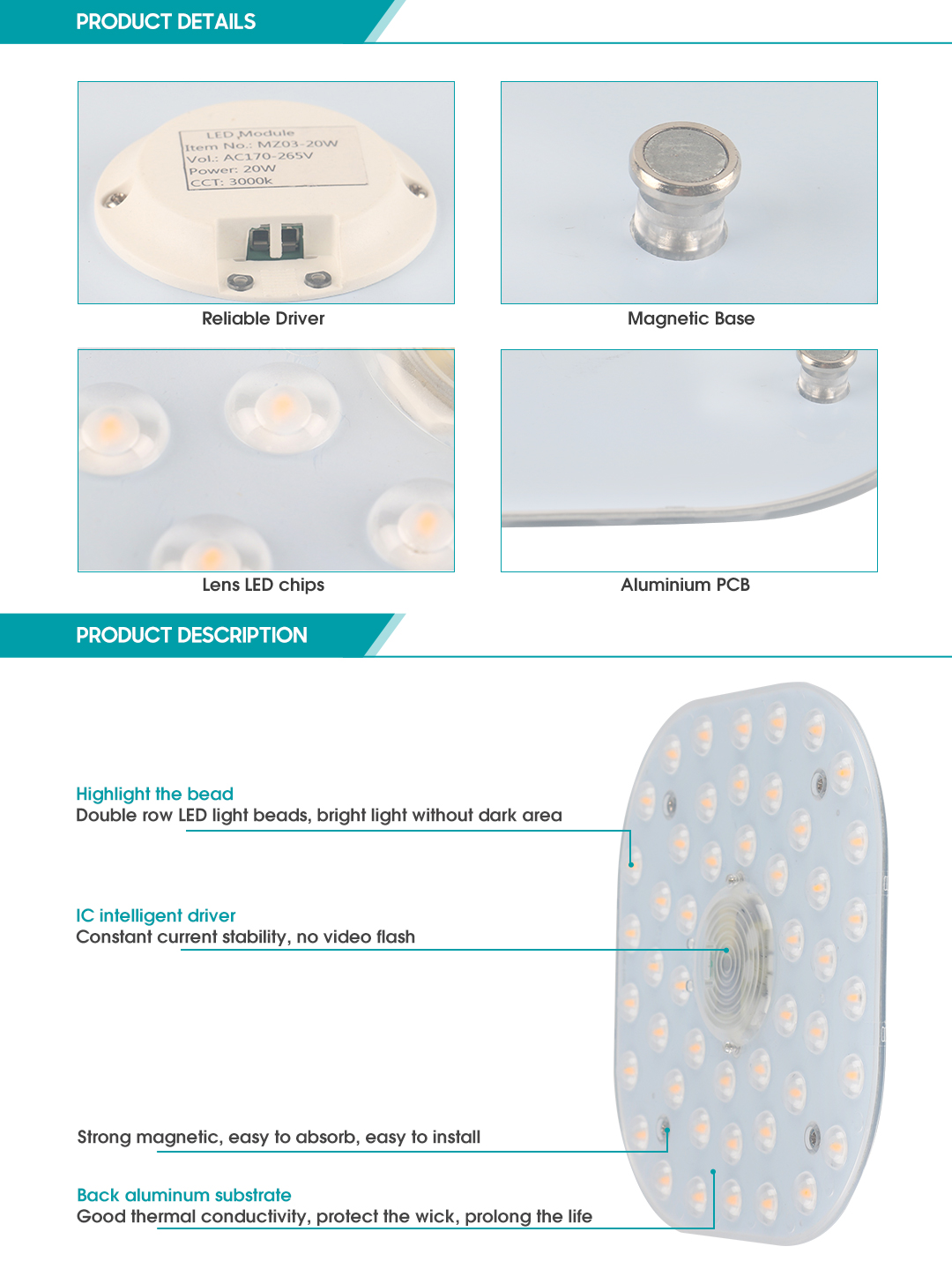

product features
- High-quality aluminum substrate with good thermal conductivity, electrical insulation, good heat dissipation and long service life.
- The four magnets at the bottom are adsorbed, no need to punch holes, easy and fast to install, strong suction will not fall off, strong and durable.
- Integrated intelligent IC drive, with voltage stabilization, rectification, anti-high voltage, low voltage functions, intelligent control circuit current, more reliable quality.
- Optical lens design, using secondary light writing refraction lens, precisely guides light to achieve 180° uniform light emission, no dark areas, no shadows, more suitable for home use.
- Original high-brightness SMD2835 LED lamp beads, high brightness, long life, low light decay, soft light without glare.
INSTALLATION GUIDE
1. Turn off the power before installation.
2. Disassemble the lamp, remove the ballast, lamp holder and other lines, and only keep the bare wire.
3. Fix the LED module on the base with magnets.
4. Tighten the wiring with the "input terminal" to check whether the installation is firm.
5. Finally, install the lampshade and turn on the power.
Note: The chassis of the lamps and lanterns at home is made of plastic or aluminum, the magnetic feet can be removed, and the magnetic feet can be screwed to install.
Application Scenarios
Suitable for most ceiling lamps.
