Product Specifications
|
Model |
Dimension(mm) |
Power |
LED Chip |
Number of LED |
Luninous flux |
|
SM062480 |
φ220×22 |
24W |
2835 |
120 |
2880lm |
|
SM063080 |
φ220×22 |
30W |
2835 |
150 |
3600lm |

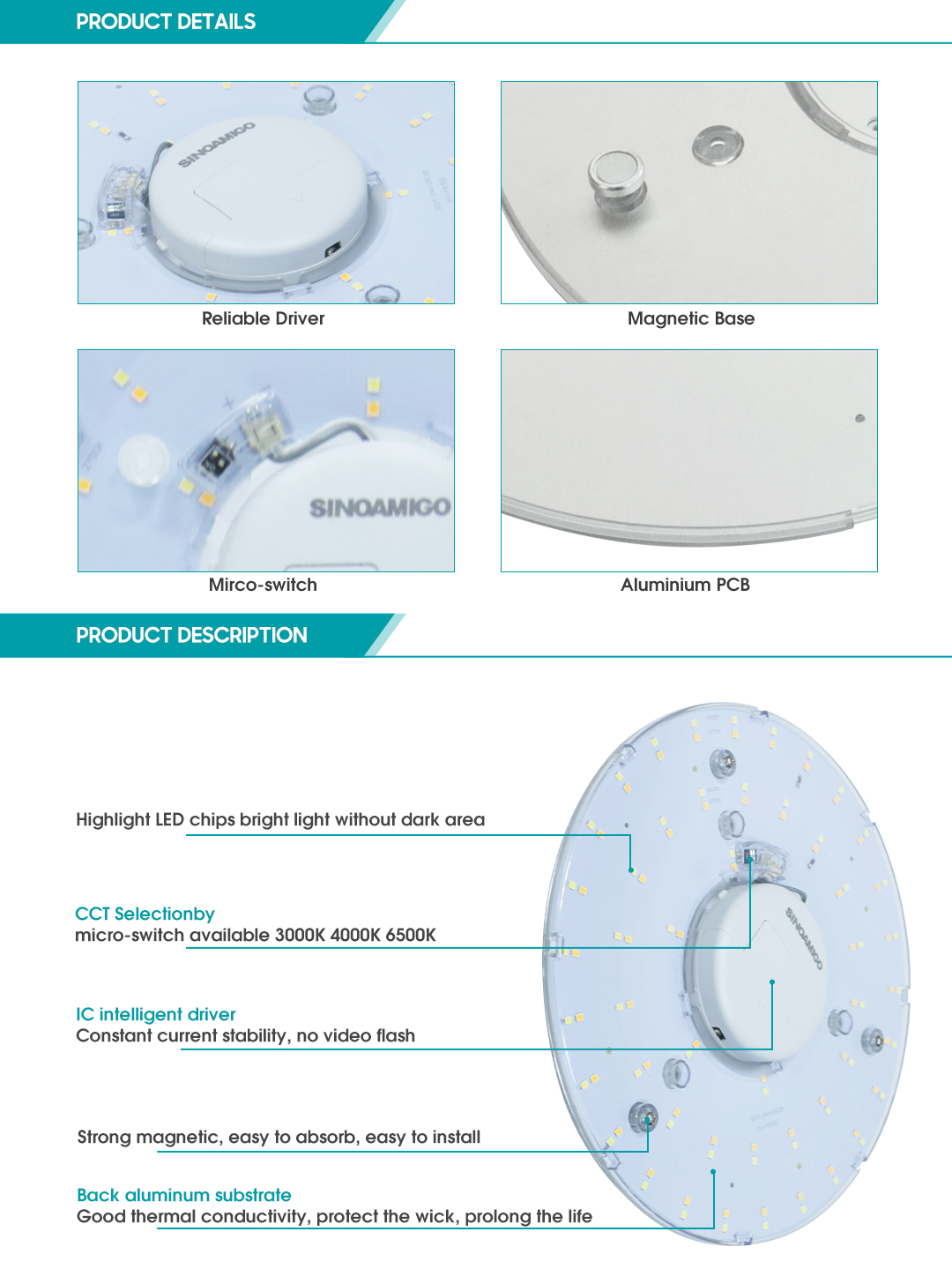

Product Features
1. The color rendering index is greater than or equal to 80, which is close to the natural color and has a high degree of color reproduction; the three-color change, different color temperatures can be adjusted through the micro switch, 3000K, 4000K, 6500K, and the appropriate color temperature can be selected in different scenarios, with 10 seconds Memory function when power off .
2. The lamp body comes with a strong magnet, humanized design, magnet adsorption, can be installed anywhere, easy to install, durable .
3. The thickened one-piece aluminum base plate can dissipate heat quickly, effectively solving the heat dissipation problem of the lamp body, and the LED chip has a longer service life .
4. Constant current drive, no flicker, no radiation, protect eyesight health; high-brightness LED lamp beads, 120LM/W high luminous efficiency, uniform light without dark corners .
5. More energy-saving, saving 90% electricity than incandescent lamps and 70% electricity saving than energy-saving lamps .
INSTALLATION GUIDE
1. Turn off the power supply before installation.
2. Remove the lampshade, and remove all old light sources, electrical components and screw buckles.
3. Must remove the original ballast and driver
4. Fix the LED module on the base with magnets or screws.
5. Tighten the wiring with the "input terminal" to check whether it is firmly installed.
6. Install the lampshade and turn on the power supply.
Application Scenarios
Suitable for most ceiling lamps.
