Highbay Light

SH-O3 bright UFO LED Highbay Light

Short Description:

product description:

Product number:SH-O3

Body Materiall: Die-cast Aluminum Housing

Warranty: 3 years

IP Rating: IP65

CCT:3000K / 4000K / 5000K / 5700K

Housing Color:Black


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Power

 Nominal  Voltage

Lumen Output (±5%)

IP  Protection

IK Protection

SH-O3100

Ø220×85

100W

100-277V

13000LM

IP65

IK08

SH-O3150

Ø264×93

150W

100-277V

19500LM

IP65

IK08

SH-O3200

Ø302×93

200W 100-277V 26000LM IP65 IK08

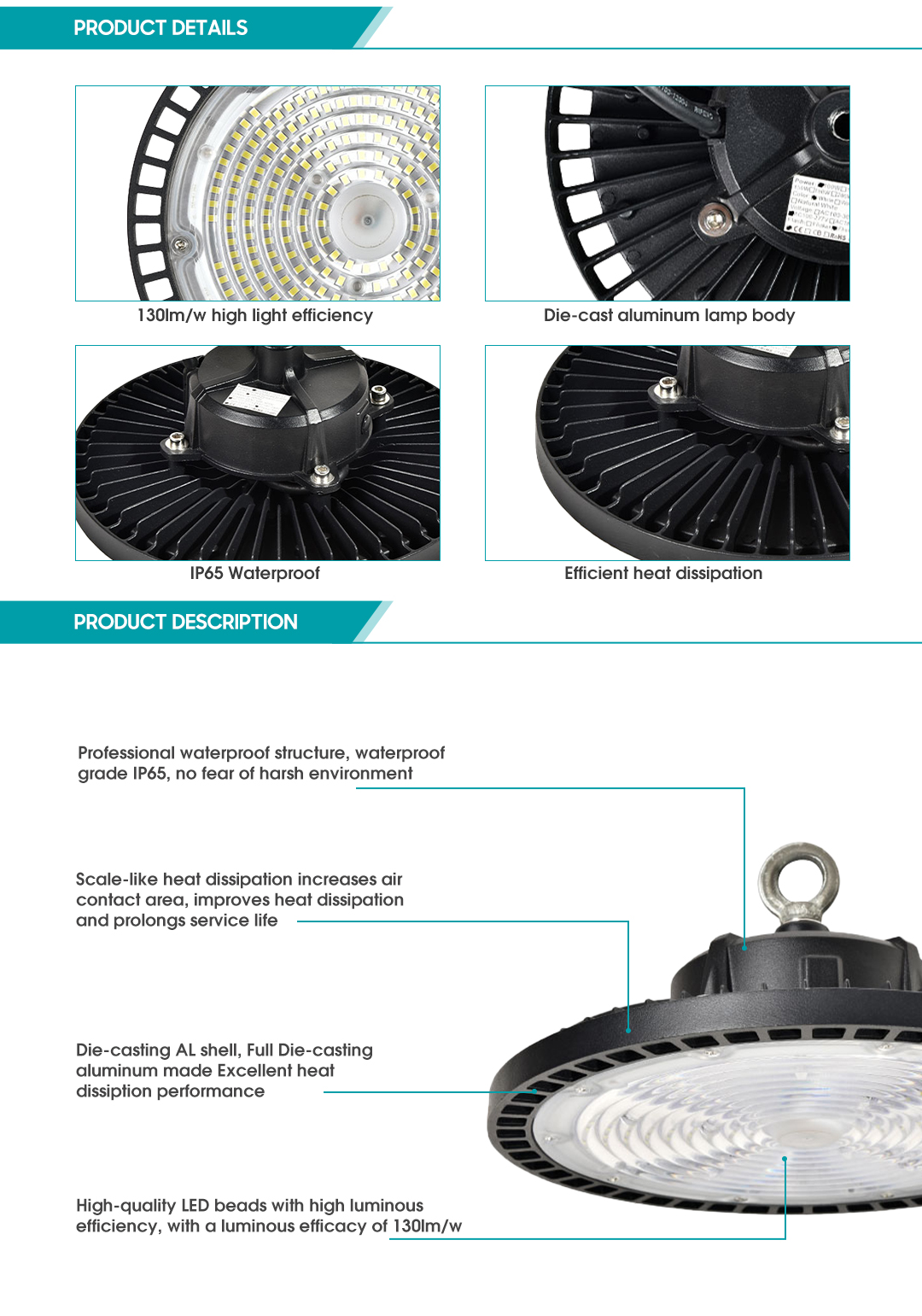

Product Features

1. High-quality aluminum alloy integrated die-casting method, exact form, adequate material, huge heat dissipation area, strong thermal conductivity, high temperature resistance, and corrosion resistance are all features of the SH-O3 high bay light. IP65 grade protection, high-strength protection process requirements, waterproof and dustproof design, and the ability to adapt to a variety of difficult outdoor situations.

2. The lamp body employs a professional heat dissipation construction, with a beautiful look and concealed air duct, transparent inside and out, establishing a 3D three-dimensional heat dissipation with the top and lower air ducts of the heat sink, dispersing heat fast and extending light life.

3. Luminous effectiveness 120-130lm/w, high brightness, low light decay, 3-year guarantee, service life up to 5000 hours, low maintenance cost, using high-efficiency SMD 2835 chip. Color rendering index Ra80, restore the color of the environment.

4. PC optical lens, lamp beads emit uniformly and softly, high light transmittance, impact resistance, enhance lighting performance while minimizing glare, expand light-emitting area, and provide a broader irradiation range.

5. In-built drive, high-end drive power intelligence IC control circuit switch with over-temperature, over-voltage, short-circuit, anti-surge, and other special characteristics.

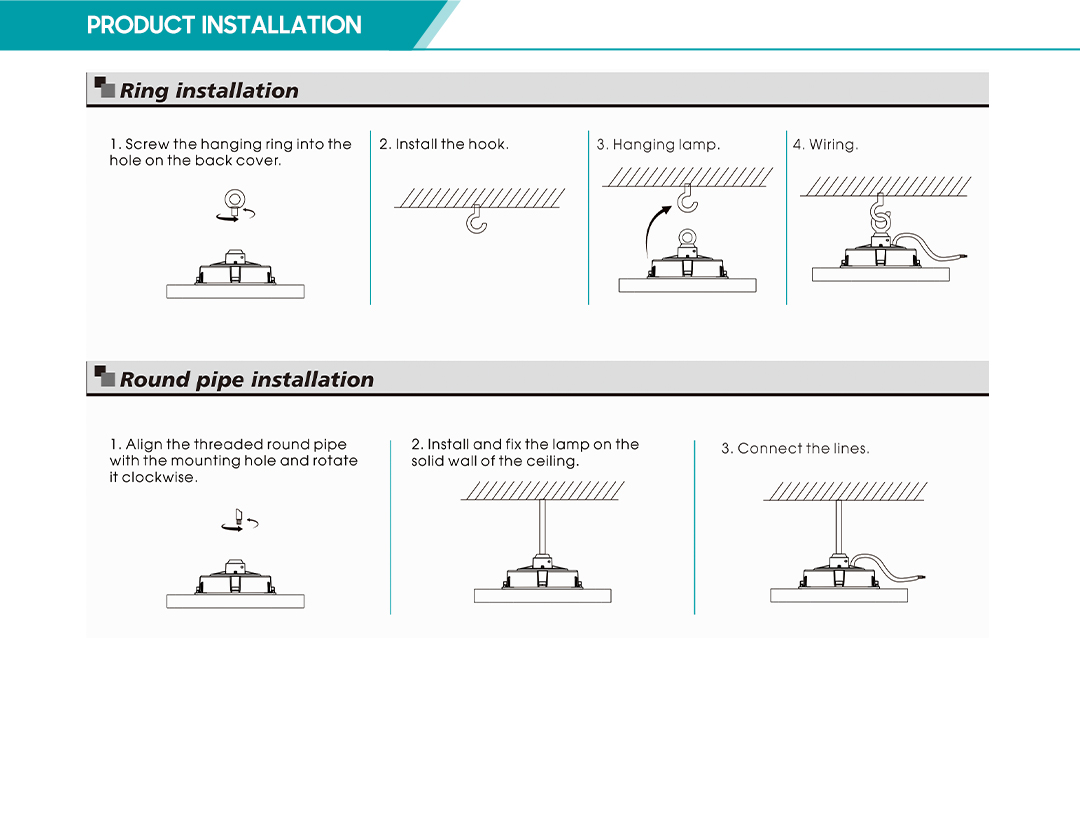

6. The lampshade is composed of high-quality PC mask with a high hardness and impact resistance rating of IK08, providing superior explosion-proofing. To satisfy diverse customizing demands, support a range of installation techniques such as ring installation, chain installation, bracket installation, and boom suspension installation.

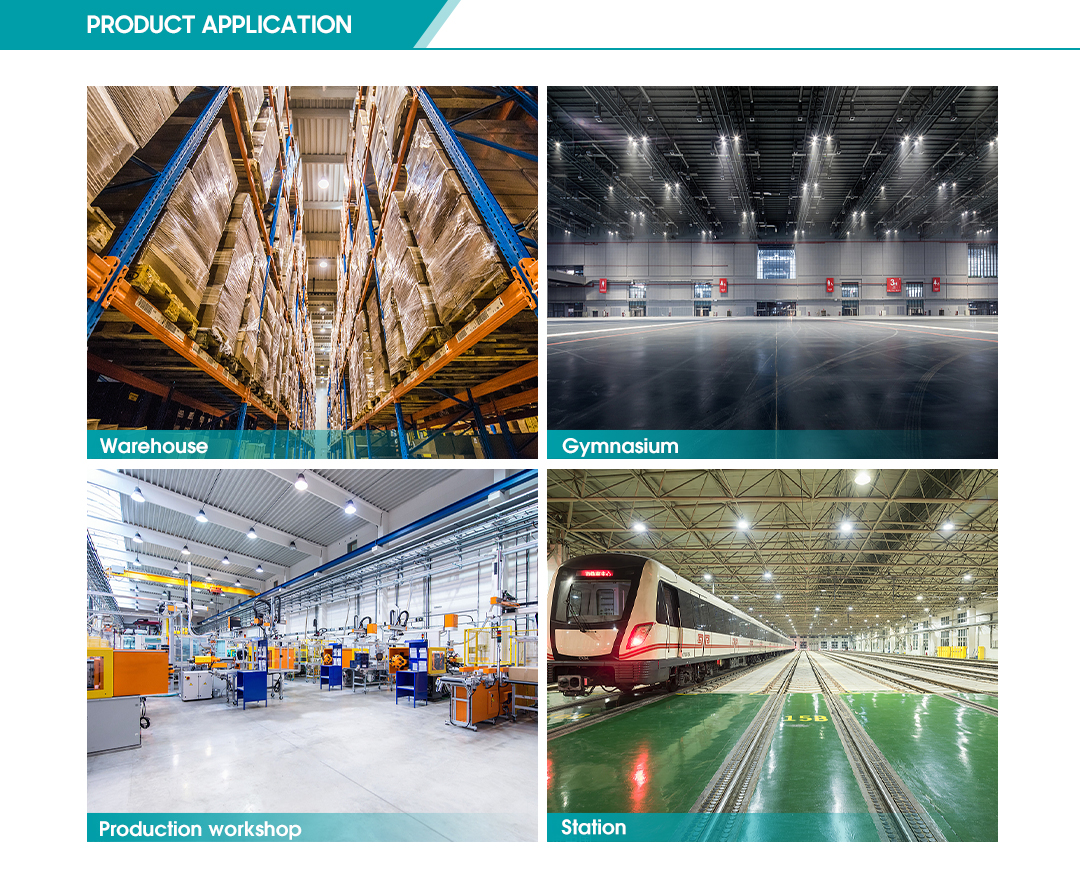

Application scenario

It is commonly used in the illumination of high-bay industries, workshops, warehouses, exhibition halls, gymnasiums, waiting rooms, trains, airports, shopping malls, hypermarkets, outdoor structures, and other locations.
