Highbay Light

SH-O1 bright LED Highbay Light

Short Description:

Product number: SH-O1

Body Materiall: Die-cast Aluminum Housing

Warranty: 5 years

IP Rating: IP66

CCT:3000K / 4000K / 5000K / 5700K

Light Distributions:  60° 90° 120°

Housing Color:Black


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Power

 Nominal  Voltage

Lumen Output (±5%)

IP  Protection

IK Protection

SH-O150

Ø245×115

50W

100-277V

7000LM

IP66

IK10

SH-O1100

Ø280×115

100W

100-277V

14000LM

IP66

IK10

SH-O1150

Ø330×115

150W

100-277V

21000LM

IP66

IK10

SH-O1200

Ø380×115

200W 100-277V 28000LM IP66 IK10

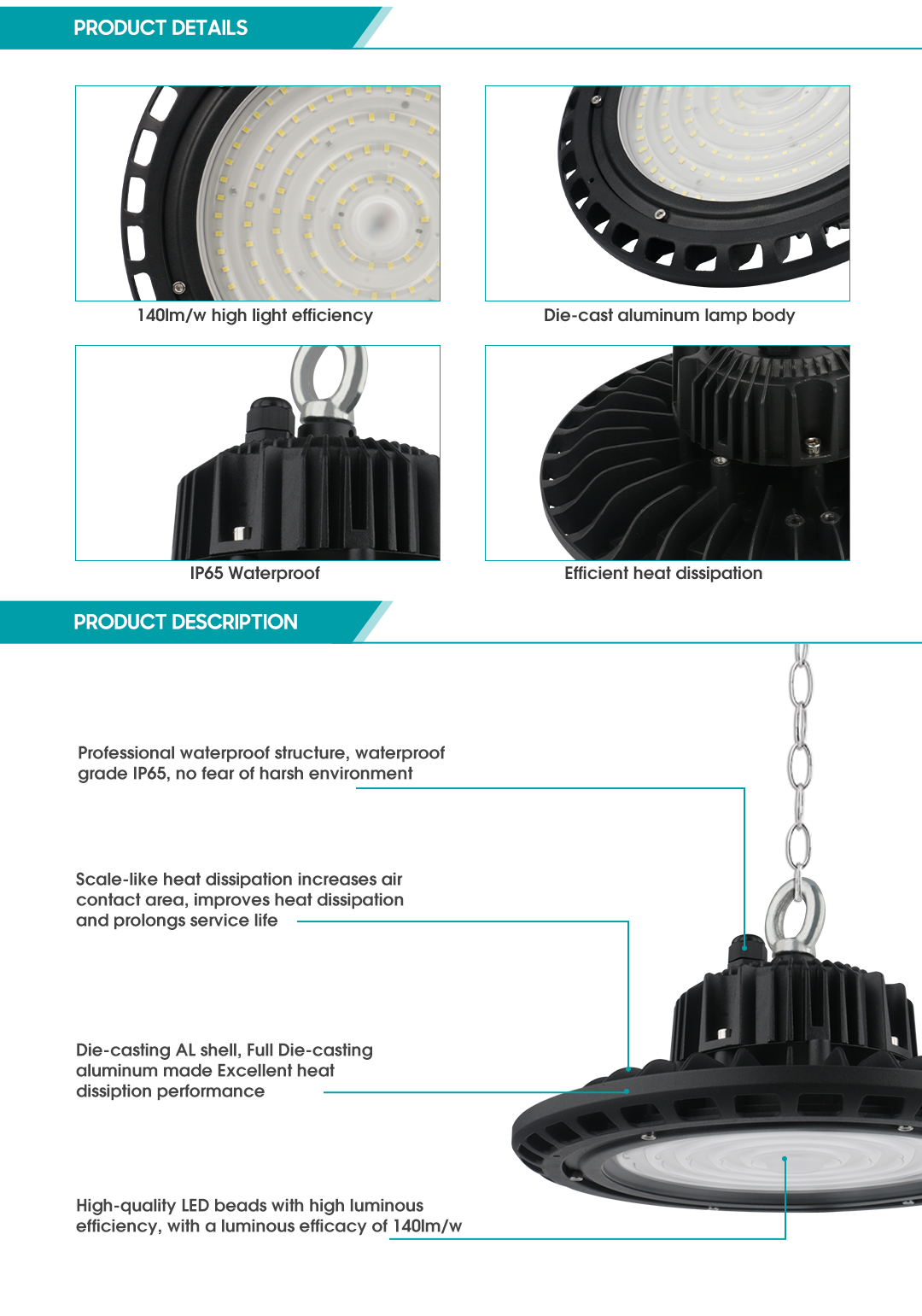

Product Features

1. SH-O1 high bay lamp adopts thickened pure aluminum lamp body, one-piece die-casting molding, sufficient materials, lightening lamp weight, expanding heat dissipation area, good thermal conductivity, high temperature resistance, corrosion resistance, and can adapt to various harsh outdoor environments. A large number of heat sinks behind the lamps provide efficient heat dissipation performance, ensuring stable working conditions and service life

2. SH-O1 Using Lumileds 3030 lamp beads, the light efficiency is 150lm/w, high brightness, low light decay, and the service life is as high as 10,000 hours. Static protection. Ra80 color rendering index, pure light color, restore the environment color.

3. PC optical lens, the lamp beads emit light evenly, high light transmittance, increase the light-emitting area, and the irradiation range is wider. Impact resistance, optimize lighting performance and reduce glare at the same time, the lens is available in multiple angles such as 60°, 90°, 80°x140°, etc., to meet professional light distribution.

4. Meanwell high-end drive, no stroboscopic .IP66 protection, high-strength protection process requirements. Waterproof and dustproof design, can adapt to all kinds of bad weather changes, easier to clean and maintain.

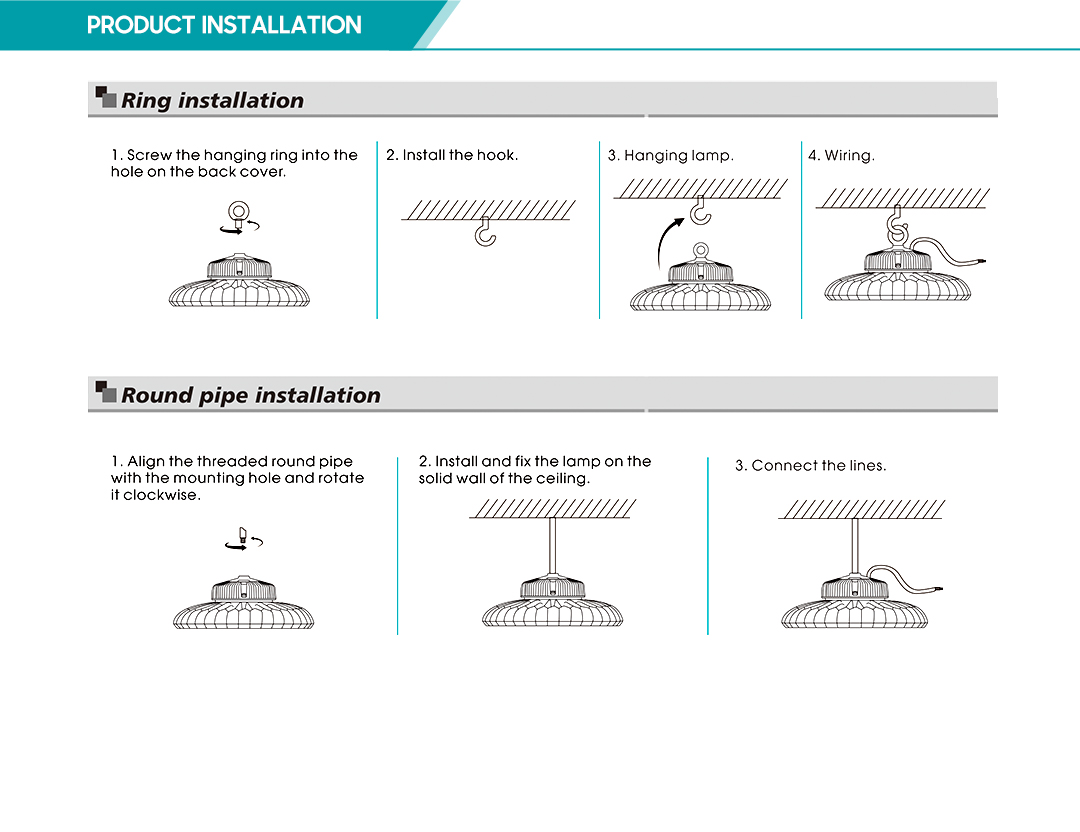

5. High-quality PC mask, high hardness, impact resistance, protection grade IK10, excellent explosion-proof effect. A variety of installation methods are available, such as rings/chains/brackets/hanging rods, to meet various customization needs.

Application scenario

Widely used in high-bay factories, workshops, warehouses, logistics center exhibition halls, highway toll stations, gas stations, supermarkets, gymnasiums, shipyards, farmers markets and other places that require lighting.
