LED downlight

SA-SCS-C series mini anti-glare bull’s eye spotlight

Short Description:

Product parameters:

Product model: SA-SCS-C spotlight

Product material: aluminum

LED: Philips COB chip

UGR: <17

CRI: >90

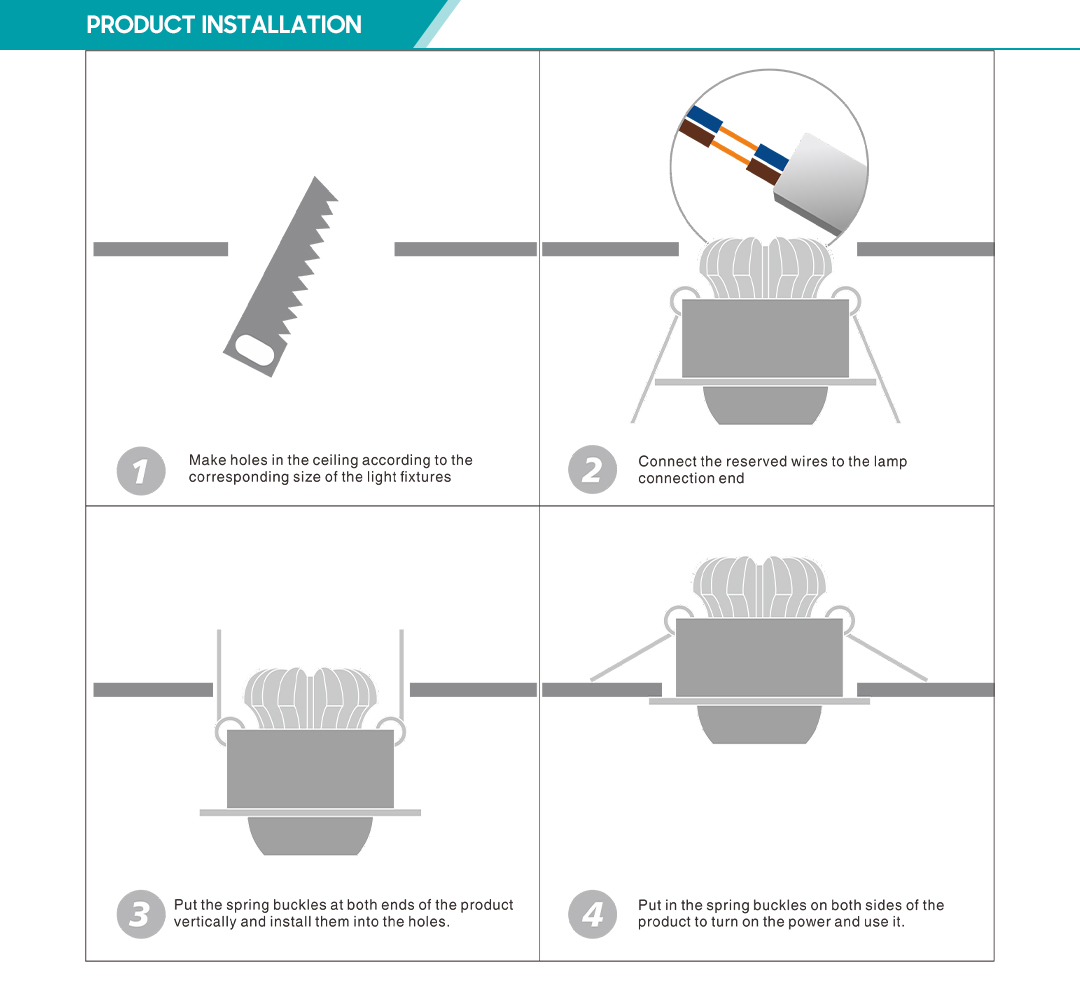

Installation method: embedded

Lamp body color: white, silver, black

Beam angle: 15° 24° 38°

Warranty: 5 years


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Cutting Hole(mm)

Power

UGR

Lumen Output (±5%)

CCT

Beam Angle

SA-SCS-C3

Φ52x45

45 3W

<17

330LM

3000K/4000K/6500K

15° 24° 38°

SA-SCS-C5

Φ52x45

45 5W

<17

550LM

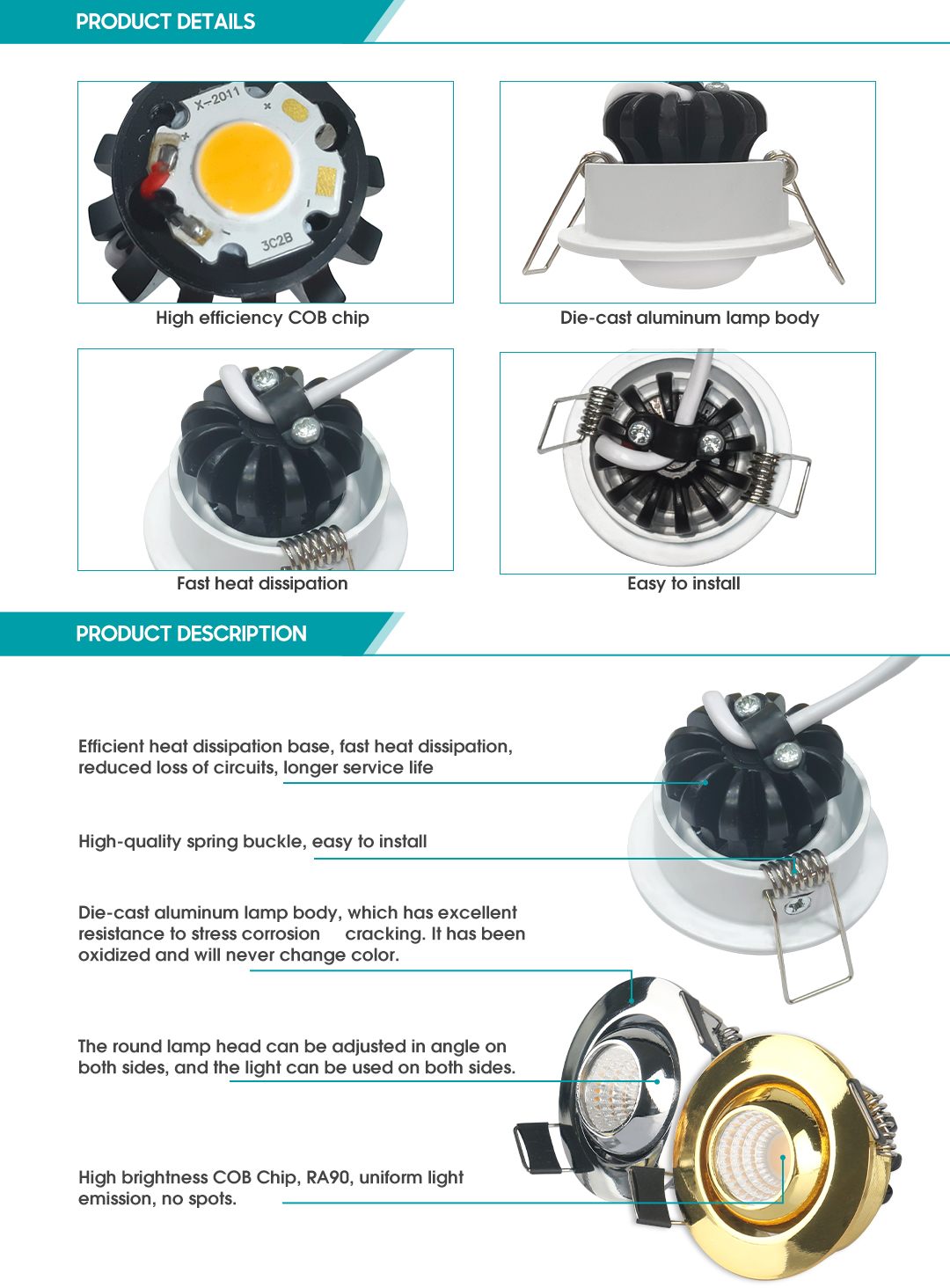

Product Features

SA-SCS-C small spotlight adopts precision aviation aluminum, which has excellent resistance to pressure corrosion cracking, and will never change color after oxidation treatment. The radiator on the back adopts a strong convection design to solve the heat dissipation problem and ensure the life of the light source.

SA-SCS-C small spotlight adopts Philips COB light source, integrated chip, more beautiful appearance, the chip is a point source, the light is uniform, the thermal resistance is smaller, the light decay is small, the brightness is high, and the color rendering performance is better.

Pure aluminum high-efficiency reflector cup, spin forming, parabola surface design, professional secondary optical reflection, effectively reduce light loss, ensure optical viewing angle control, and make light output control more uniform.

Three colors are available, with a convex round effect in the middle, making the lamp small and charming. The middle round lamp head can be adjusted on both sides, and the light can be illuminated on both sides.

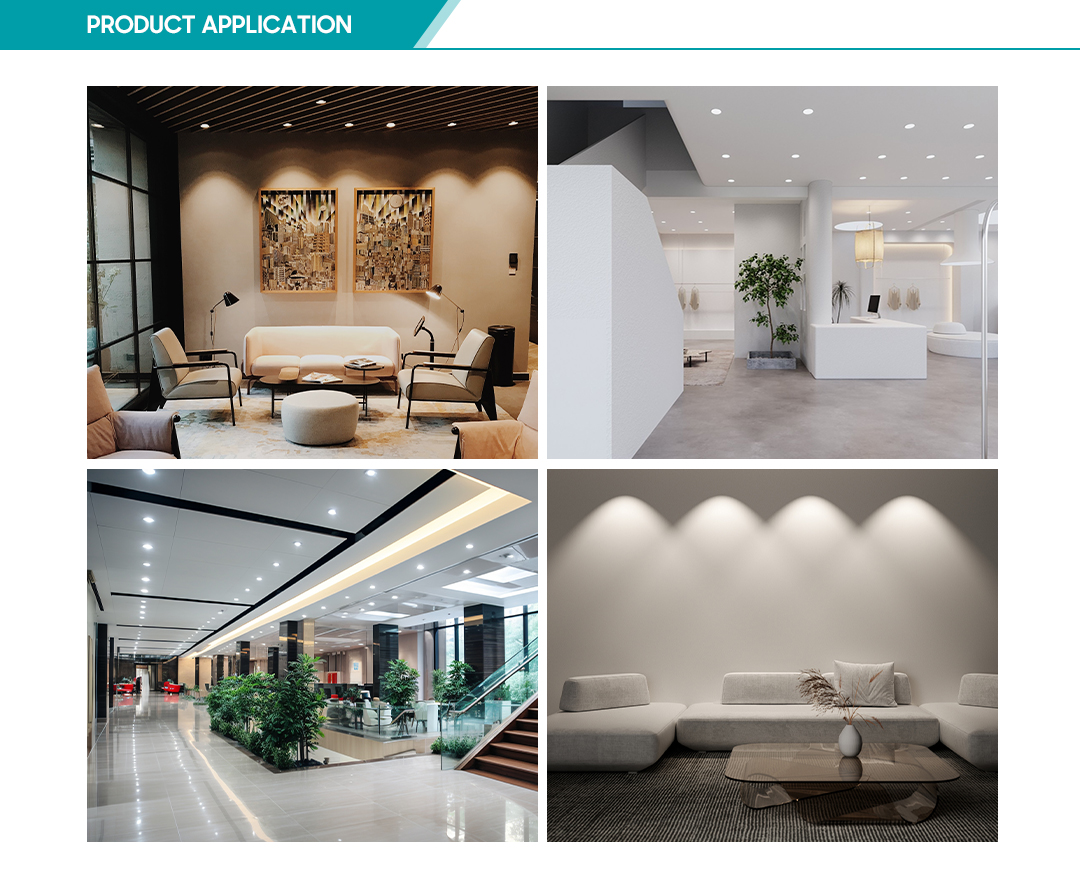

Application scenario

SA-SCS-C small spotlight is suitable for various commercial places or homes as basic lighting and auxiliary lighting, such as high-end hotels, restaurants, shopping malls, showcases, cafes, galleries and other styles of homes.
