LED downlight

SA-GT embedded Philips Cob Chips Westland Lamp Cup downlight

Short Description:

product description:

Product model: SA-GT Downlight

Product material: Aluminum material

LED: Philips COB chip

Installation method: embedded

UGR: <17

CRI: >90

Beam Angle: 15° 24° 36° 60°


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Cutting Hole(mm)

Power

 UGR

Lumen Output (±5%)

Beam Angle

SA-GT301(15W)

Φ115x60

105 15W

<17

1320LM

15° 24° 36° 60°

SA-GT401(20W)

Φ136x70

125 20W

<17

2200LM

SA-GT501(30W)

Φ162x80

145 30W <17 3300LM
SA-GT601(40W) Φ195x95 175 40W <17 4400LM
SA-GT801(50W) Φ220x105 200 50W <17 5500LM

Product Features

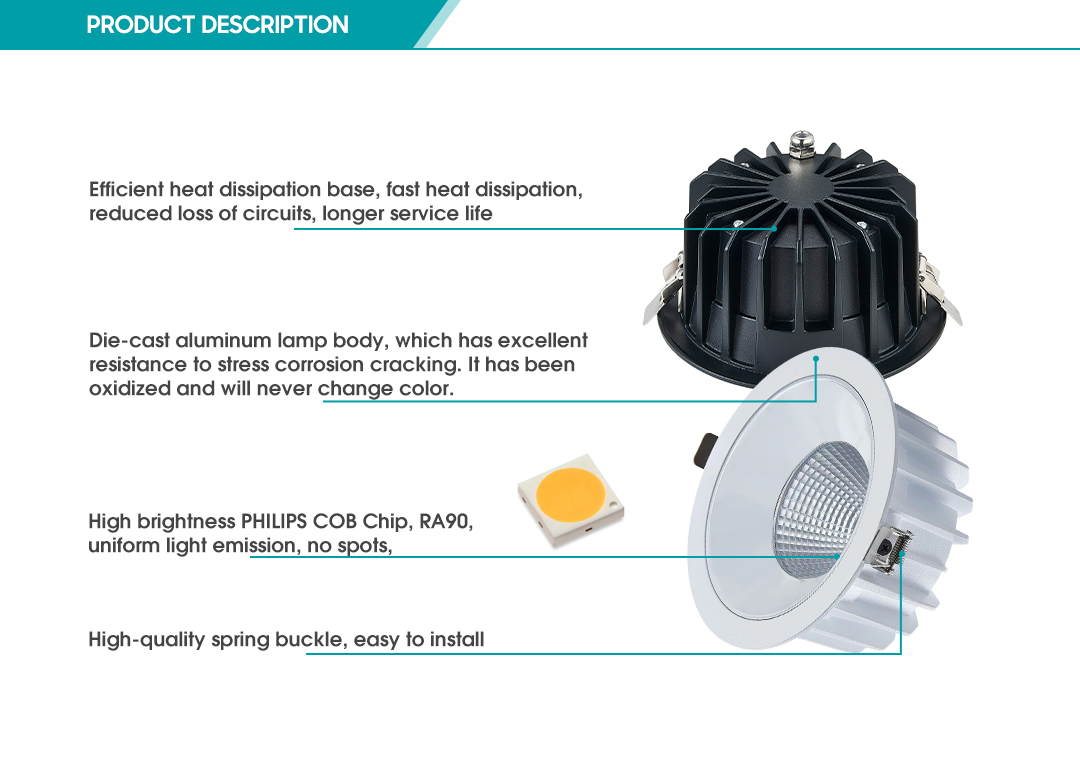

The SA-GT recessed downlight is made of all-aluminum die-casting, with surface spray treatment and higher-end details. It not only has excellent performance, but also has a unique heat dissipation structure, good ventilation and heat dissipation, and durability.

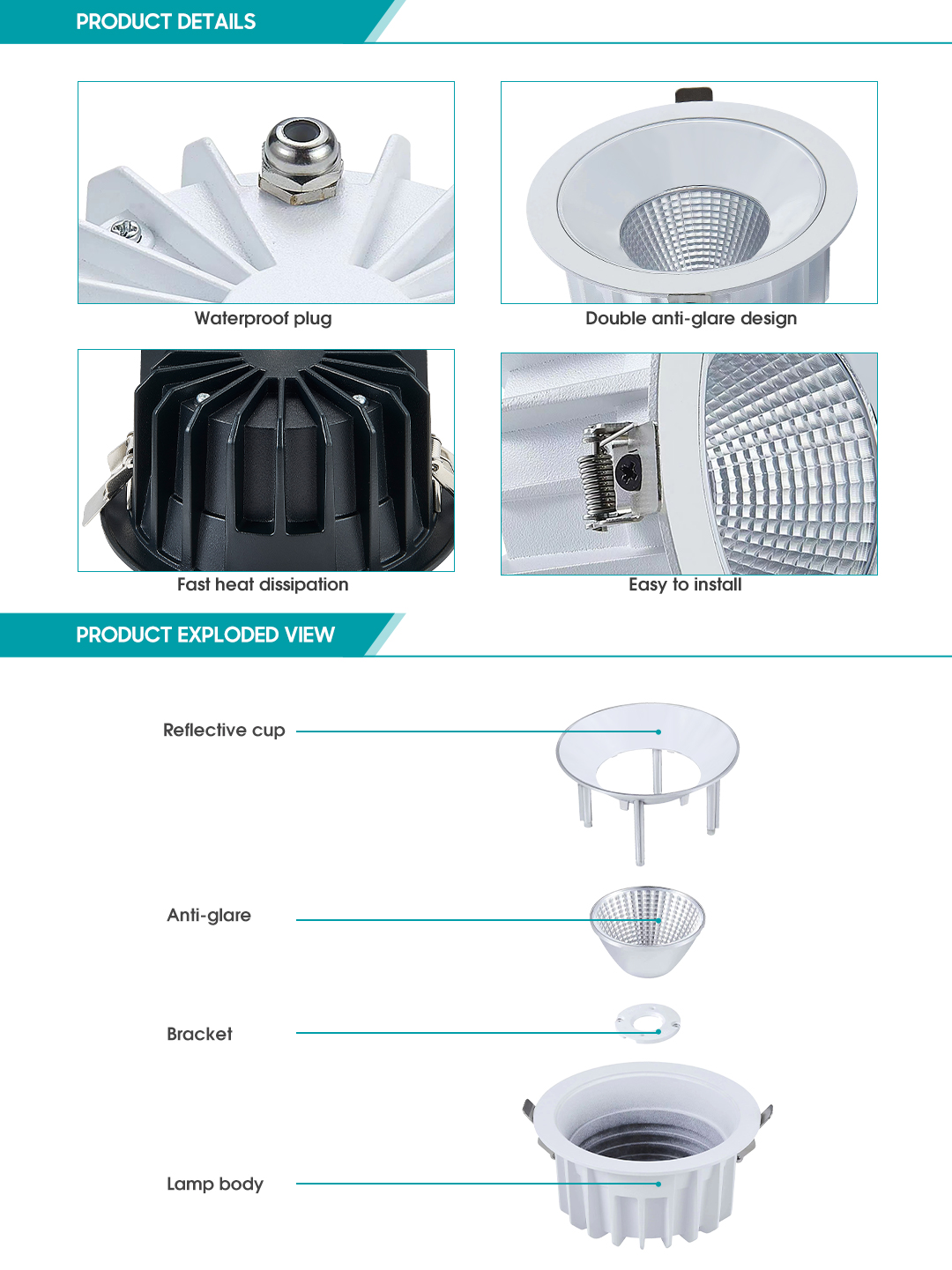

The SA-GT recessed downlight has been increased to 4 angles to choose from. The lamp cup is made into a split structure and a self-designed lampshade is added. It not only increases the anti-glare function, but also allows the color of the lampshade to be changed to meet the requirements. In order to meet the different needs of different customers for lampshade colors, the lamp cup adopts Silander lamp cup, which can maximize the anti-glare effect while also taking into account the light efficiency.

SA-GT downlights are available in five specifications and can be used in different scenarios. Available in a variety of colors, it's easy to match the downlight to your existing decor or create a unique focal point in a room.

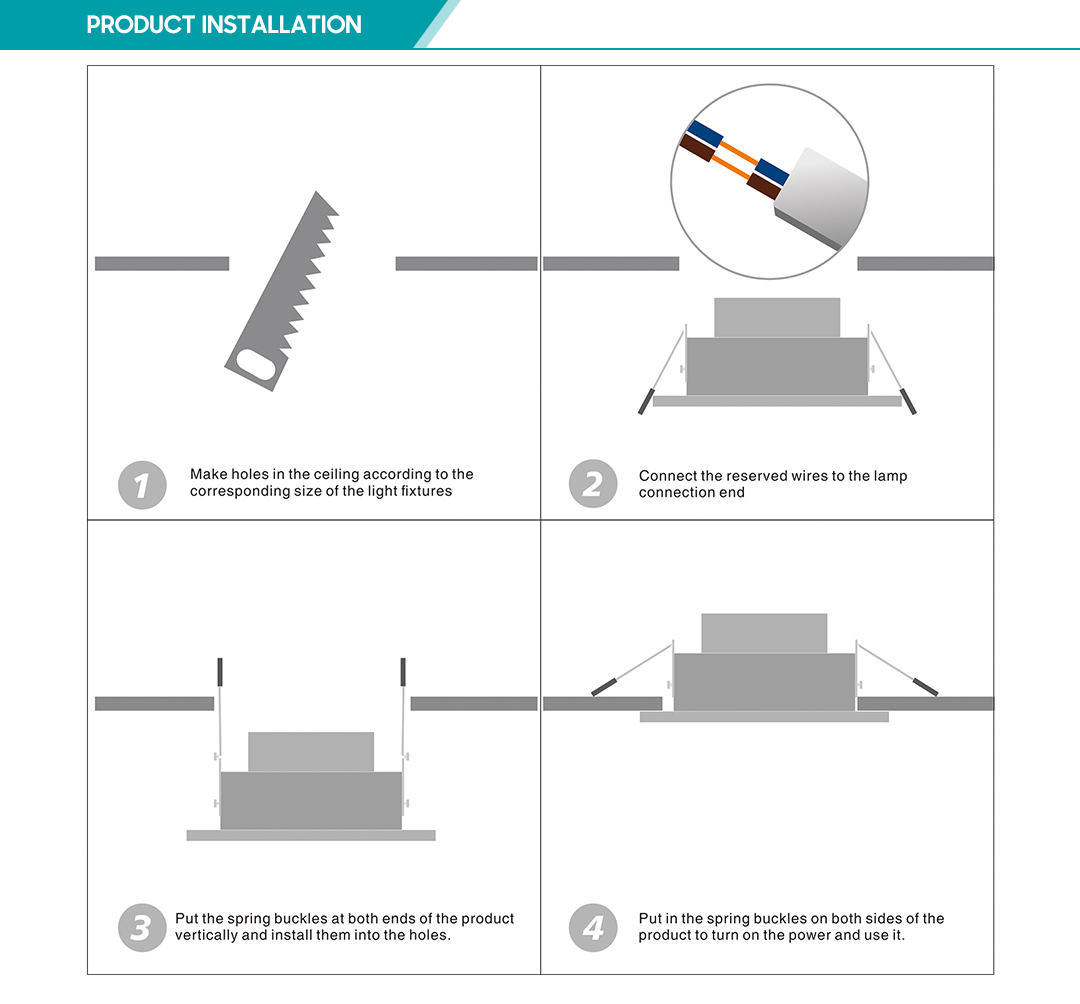

The spring buckle design says goodbye to the complicated installation process, and the installation is simple and convenient.

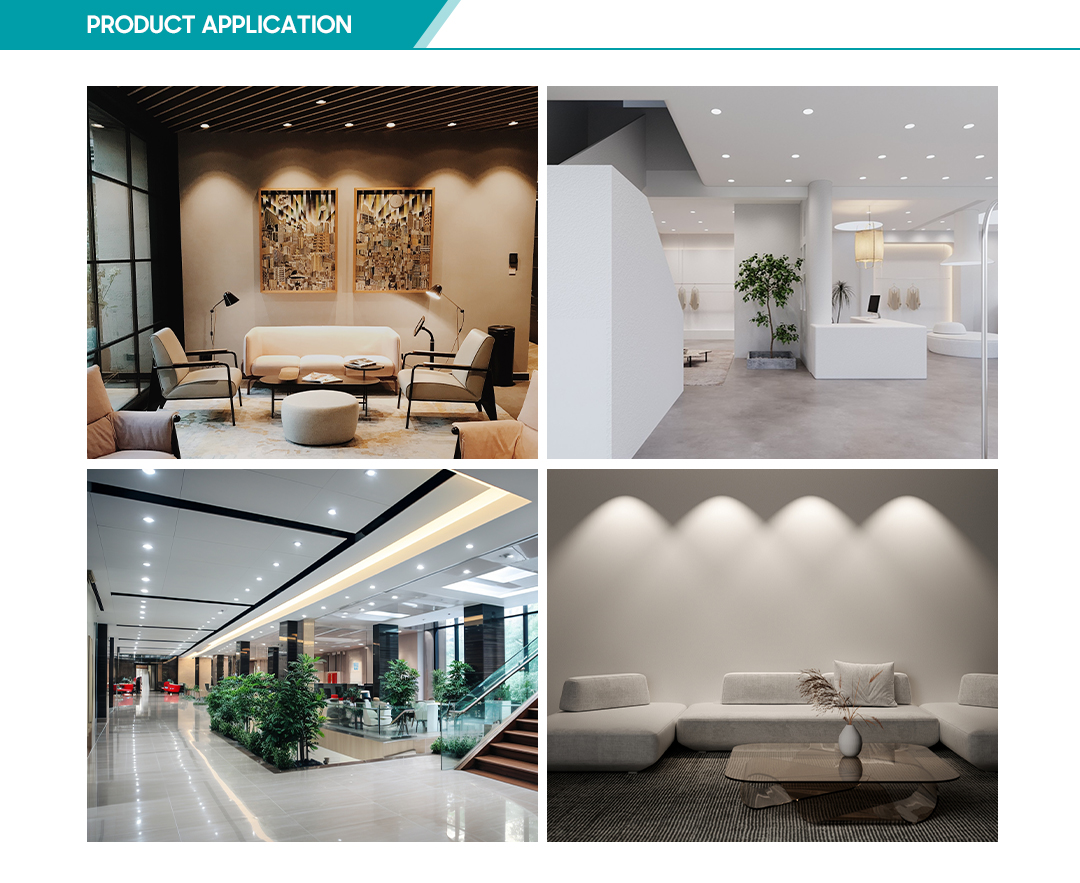

Application scenario

SA-GT downlight is simple and elegant in shape, versatile in scenes, and suitable for various places, such as living rooms, galleries, clothing stores, exhibition halls, hotels, shopping malls, home furnishings, etc.
