Product Specifications
|
Model |
Dimension(mm) |
Power |
Nominal Voltage |
Lumen Output (±5%) |
IP Protection |
IK Protection |
| SH-O9100 |
270×248×235 |
100W |
100-277V |
13000LM |
IP65 |
IK08 |
| SH-O9150 |
270×248×255 |
150W |
100-277V |
19500LM |
IP65 |
IK08 |
| SH-O9200 |
272×248×275 |
200W | 100-277V | 26000LM | IP65 | IK08 |
| SH-O9250 |
268×248×295 |
250W | 100-277V | 32500LM | IP65 | IK08 |
Product Features

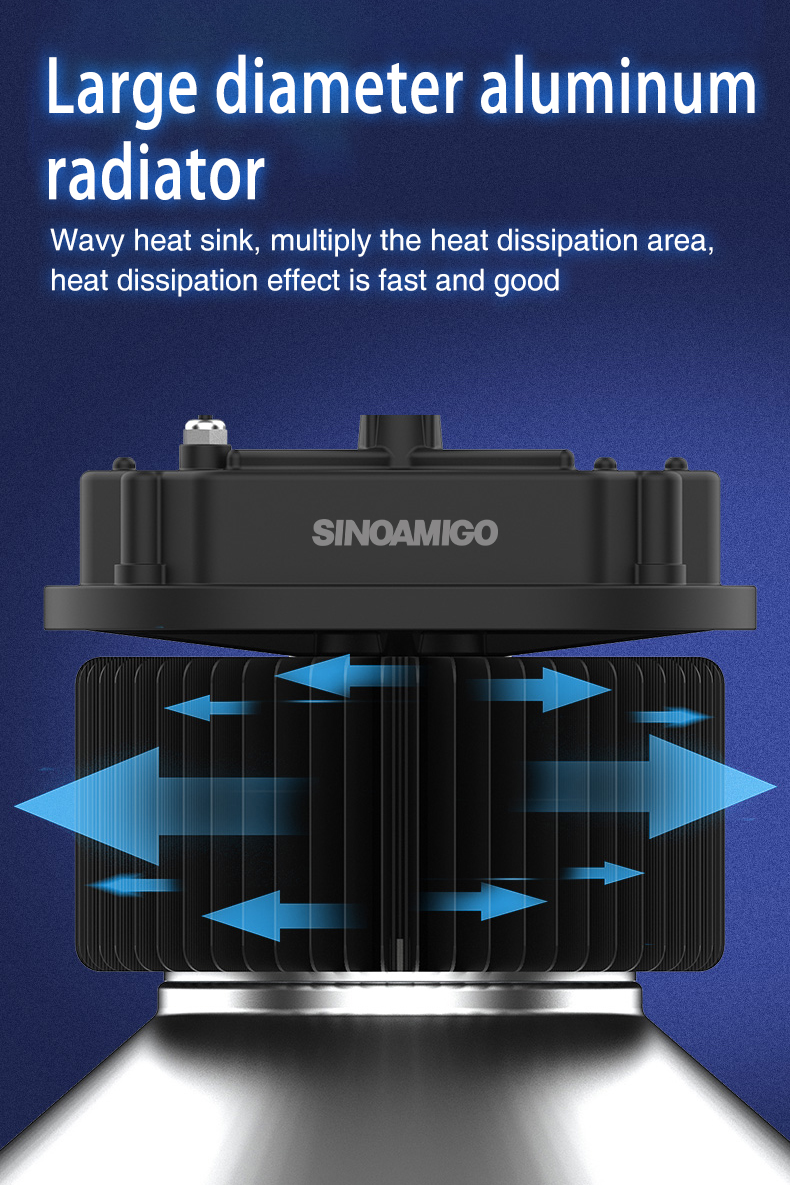

1.SH-O9 mining lamp adopts aviation grade aluminum, large diameter radiator, wavy heat sink, doubled heat dissipation area, fast and good heat dissipation effect.

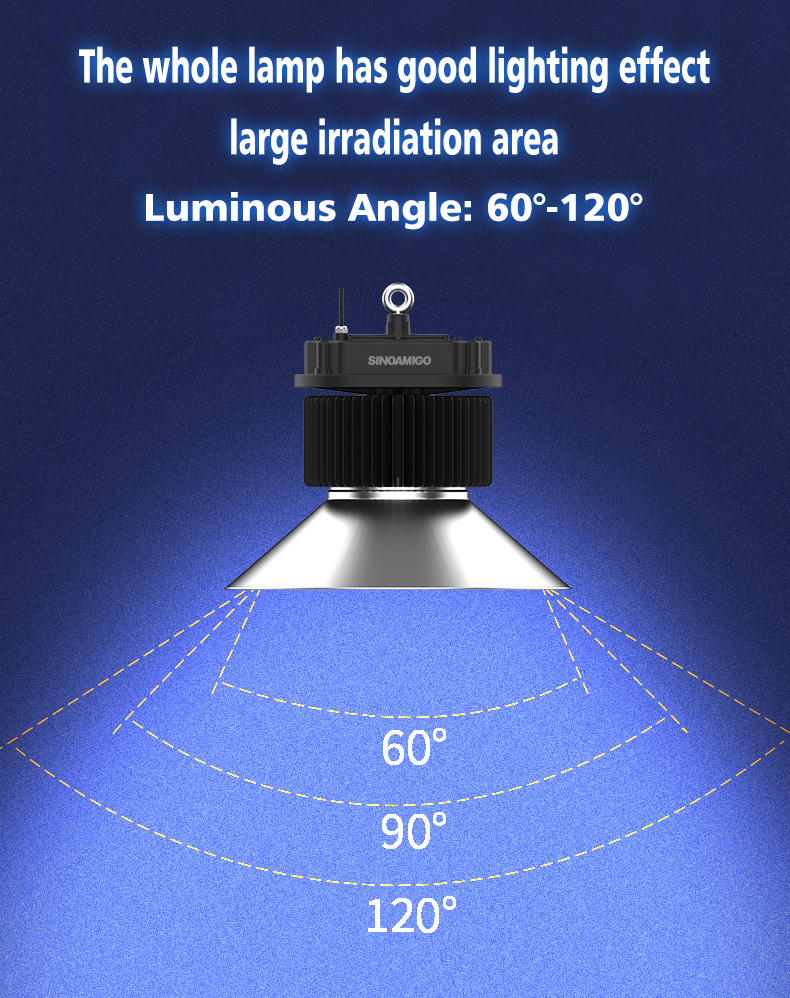

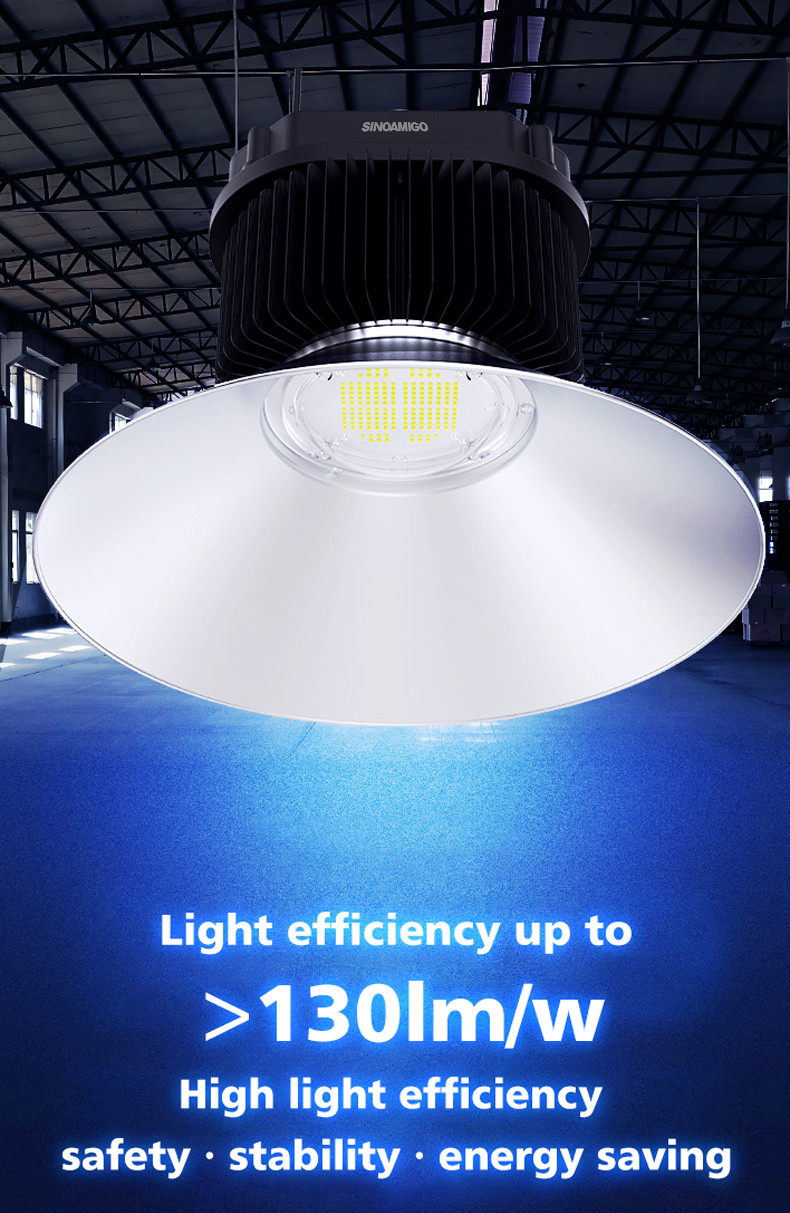

2. The light efficiency of SH-O9 mining lamp can reach 130LM/W, which saves 60%-80% of electricity than high-pressure sodium lamp under the same illumination. The lampshade is designed and made according to optical principles, with a 95% transmittance and higher brightness. The light angle is 60°~120°, the whole lamp has good lighting effect and a large irradiation area.
3. Philips or American Pu Rui A-class chip lamp beads are used, no flicker, high color rendering, ultra-long service life, can be used continuously for 50,000 hours, and the service life is more than 10 years.
4. IP65 protection level, with moisture-proof, anti-corrosion, shock-proof functions, can be well protected against lightning and surges, with over-temperature protection and over-voltage protection, reliable quality, safe and secure, better protect your electricity safety.

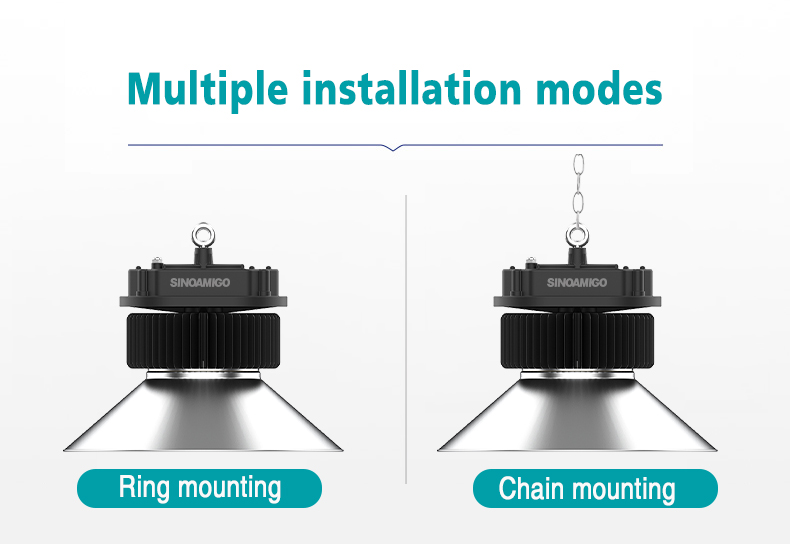

5. A variety of specifications and powers are optional, and the application scenarios are wide. . A variety of installation methods, can be installed by rings, brackets, booms, and chains to meet the installation needs of different places.
Application scenario
It is commonly used in the illumination of high-bay industries, workshops, warehouses, exhibition halls, gymnasiums, waiting rooms, trains, airports, shopping malls, hypermarkets, outdoor structures, and other locations.
