SP-B

High light efficiency back lit SP-B-C panel light

Short Description:

Product parameters:

Product model: SP-B-C panel light

Product material: PS material

LED: SMD 2835

Shape: Square, Rectangle

CRI: Ra80

Light Effect: 120-140lm/w

Warranty: 5 Years


Product Detail

Product Tags

Product parameters

Model

Voltage

Dimension(mm)

Power

LED Chip

Luminous flux

SP-B-C6060-40 85-265V 595x595x30 40W SMD 2835 4800lm
SP-B-C30120-40 85-265V 295x1195x30 40W SMD 2835 4800lm
SP-B-C60120-72 85-265V 595x1195x30 72W SMD 2835 8640lm

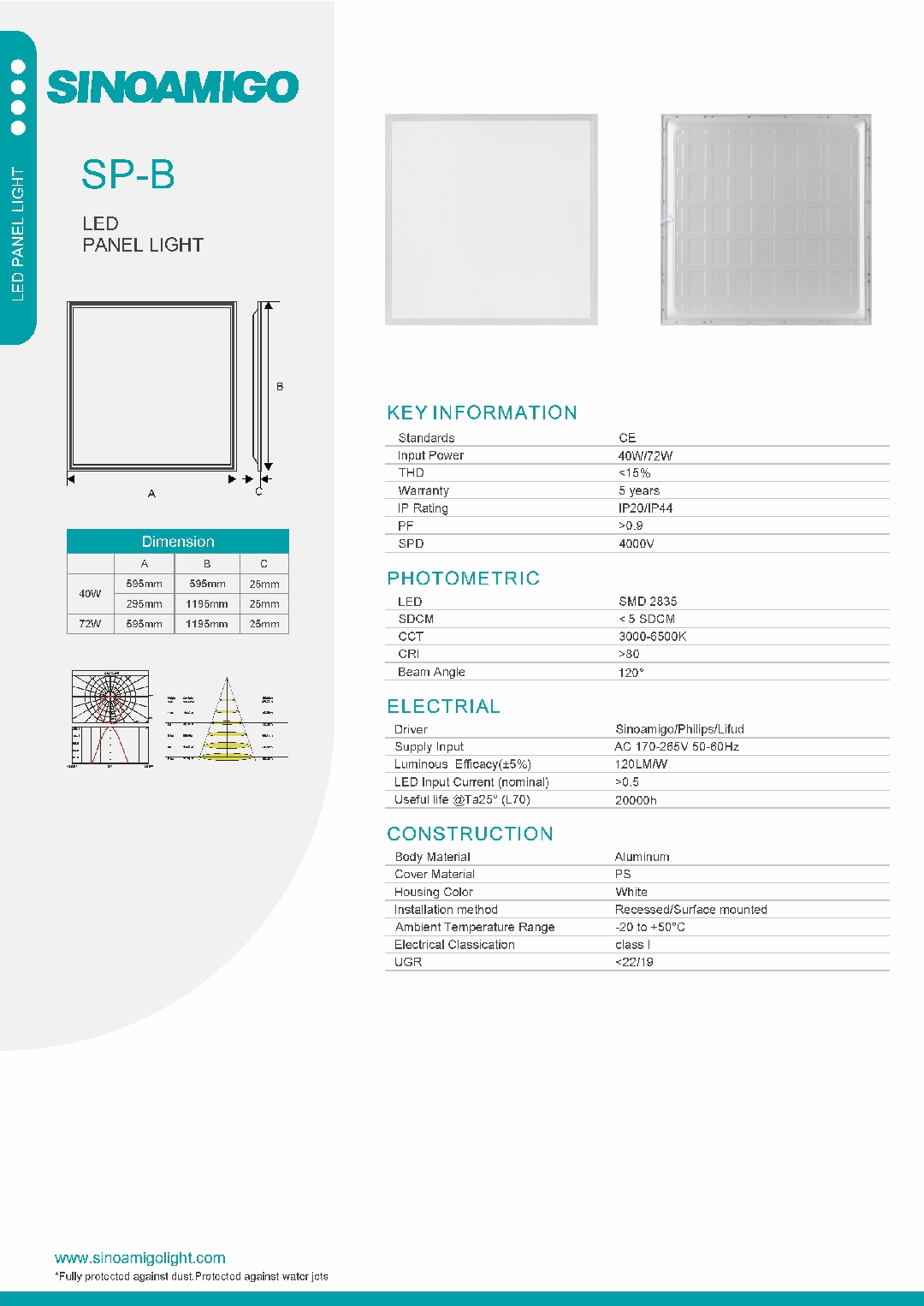

Product Datasheet

SP-B

product features

1.SP-B-C panel light is simple and elegant, fashionable and versatile. PS diffuser, easy to clean, high light transmittance, more uniform light, no yellowing after long-term use. High-quality metal back cover, fast heat dissipation, high temperature resistance, anti-corrosion and rust prevention, not easy to deform, durable.
2.LED high-brightness lens light source, direct-out light design, uniform lens refraction, larger irradiation area, large luminous area without dark area, bright light without glare. Color rendering index Ra≥80, restore true color.
3.The frame is made of high-quality aviation aluminum, spray-painted, fast heat dissipation, no rust, corrosion resistance, strong and durable. ,
4.The lamp body adopts ultra-thin design, with a thickness of only 3cm, and a variety of installation methods to meet more installation needs. Highly enclosed structure, the lamp body fits tightly, dustproof, insect-proof, waterproof, and longer service life.
5.Philips/lifud driver power supply optional, stable performance, no video flicker, plug-in wiring socket design, easy to use, fast and safe.

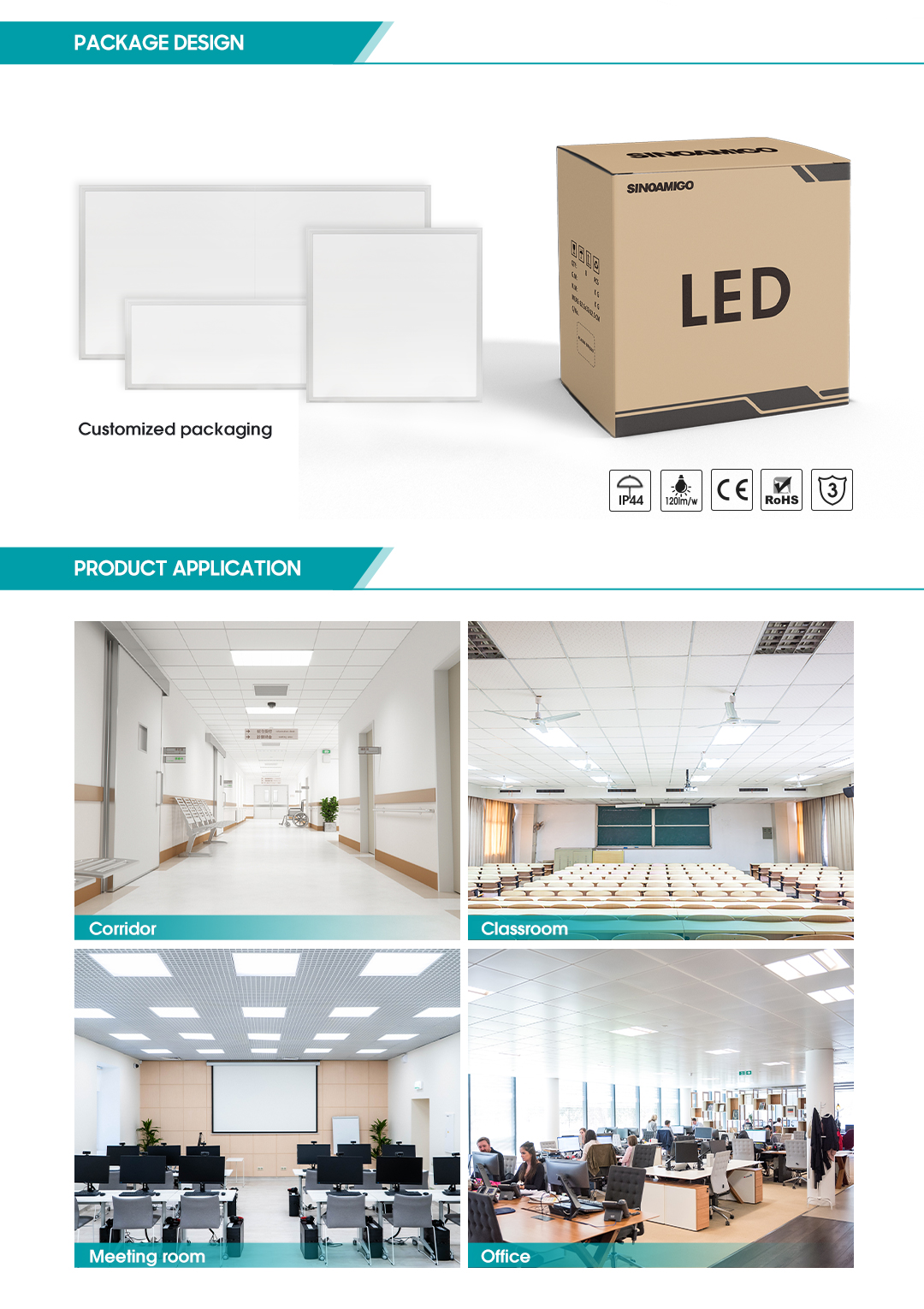

Product Use environment:

This SP-B-C panel light is used in a wide range of scenarios and is often used in offices, banks, hospitals, laboratories, shopping malls, supermarkets, parking lots, warehouses and other places.

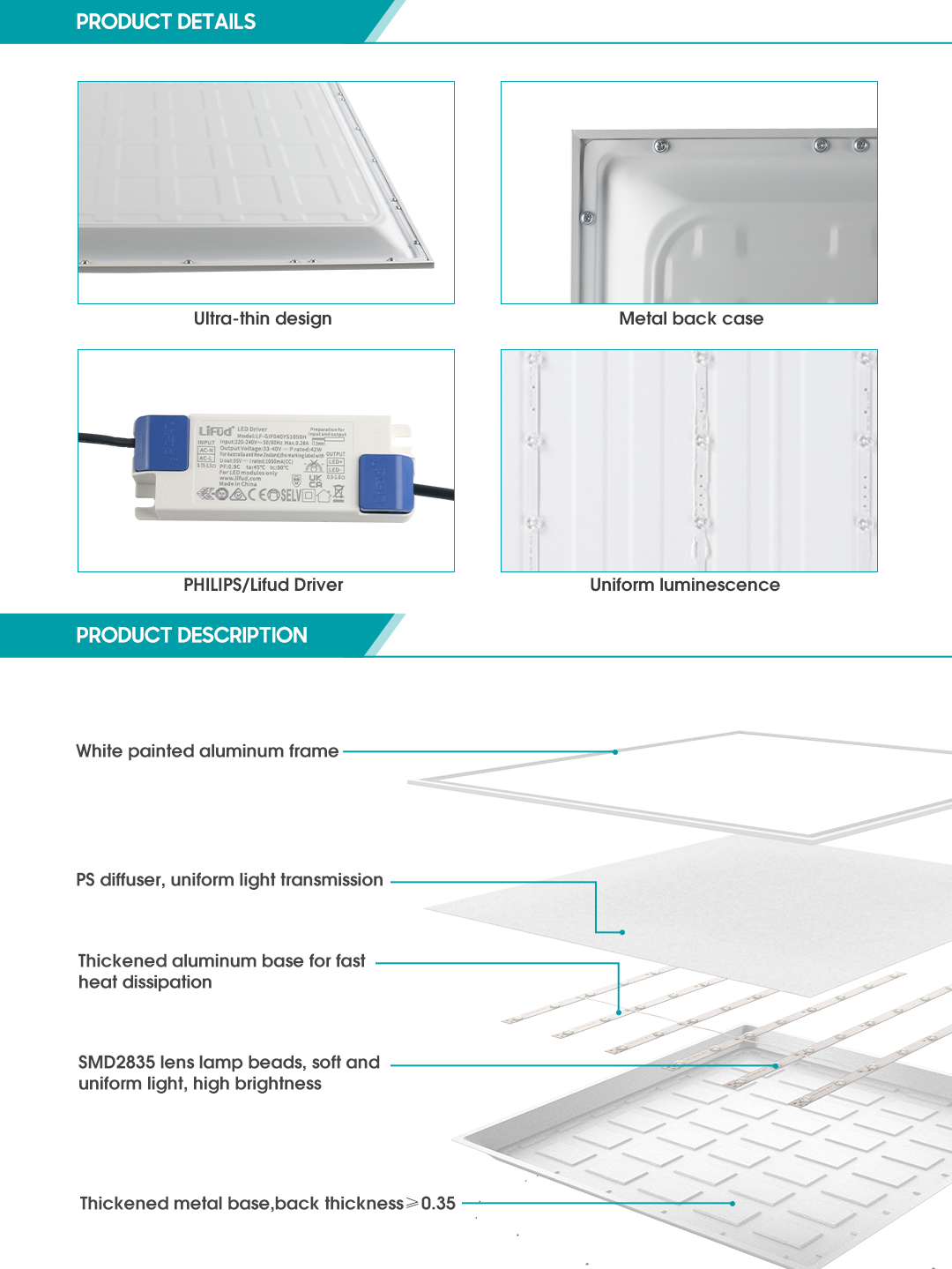

Product Description

SP-B_01 SP-B_02 SP-B_03

Product Installation

未标题-2_01 未标题-2_02 未标题-2_03 未标题-2_04
