SP-A LED panel light

Bright ultra-thin recessed SP-A panel light

Short Description:

Product parameters：

Product model: SP-A panel light

Product material: PMMA/MS material

LED: SMD 4014

Shape: Square, Rectangle

CRI: Ra80

Type of Protection: IP44

Warranty: 3 Years

Send email to us

Product Detail

Product Tags

Product parameters

Model	Voltage	Dimension(mm)	Power	LED Chip	Luminous flux
SP-A3030-12	100-265V	300x300/295x295	12W	SMD 4014	1300lm
SP-A6060-36	100-265V	600x600/595x595	36W	SMD 4014	4000lm
SP-A30120-36	100-265V	300x1200/295x1195	36W	SMD 4014	4000lm
SP-A60120-60	100-265V	600x1200/595x1195	60W	SMD 4014	6600lm

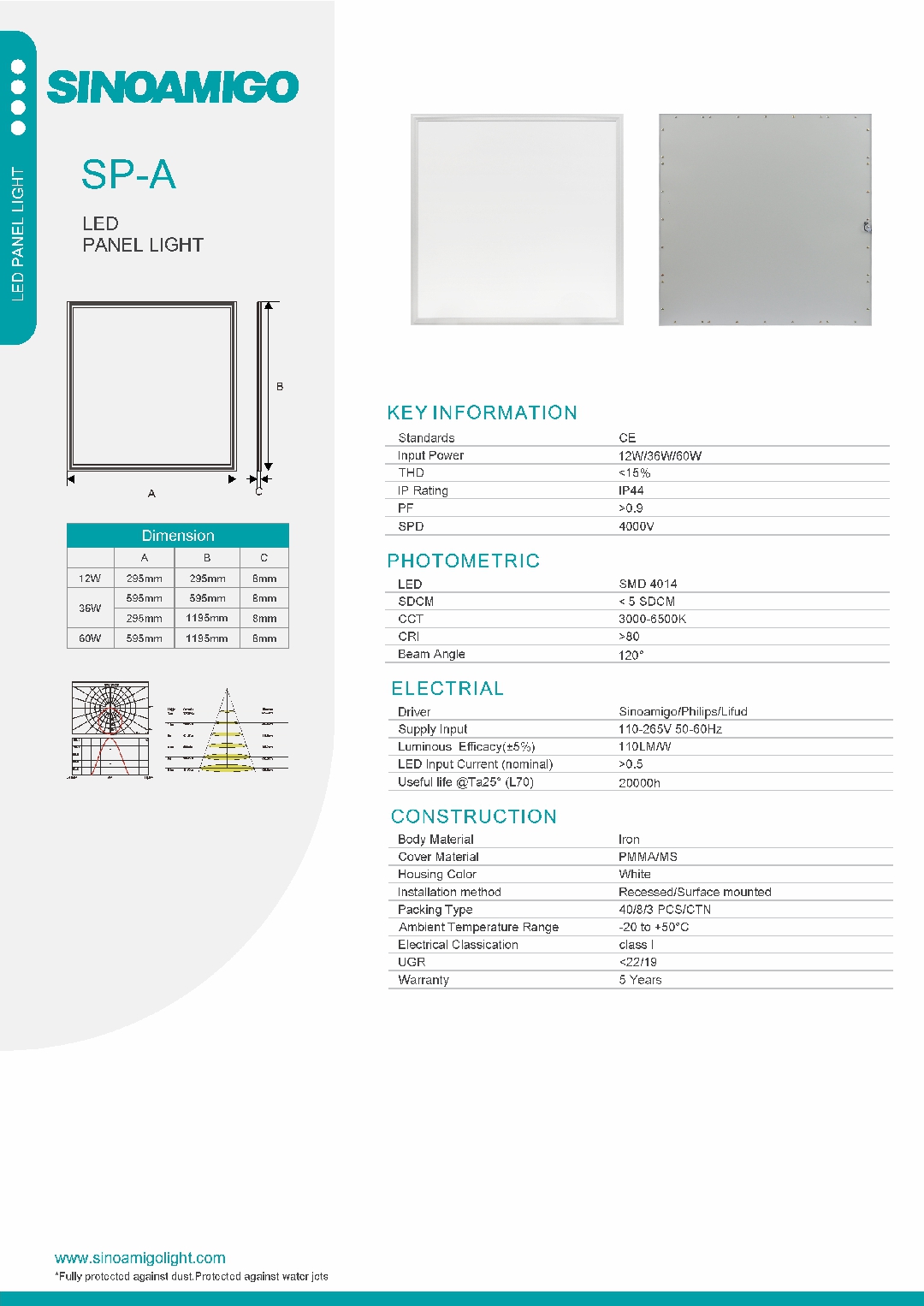

Product Datasheet

product features

1. Our SP-A LED panel light adopts enlarged substrate, super heat conduction and high heat dissipation, which ensures the service life of the lamp and has better energy-saving effect.

2. SMD 4014 lamp beads, large luminous area, stable brightness, high luminous efficiency, low light decay. The color rendering index Ra≥80, restores the true color, and the light color is soft and healthy.

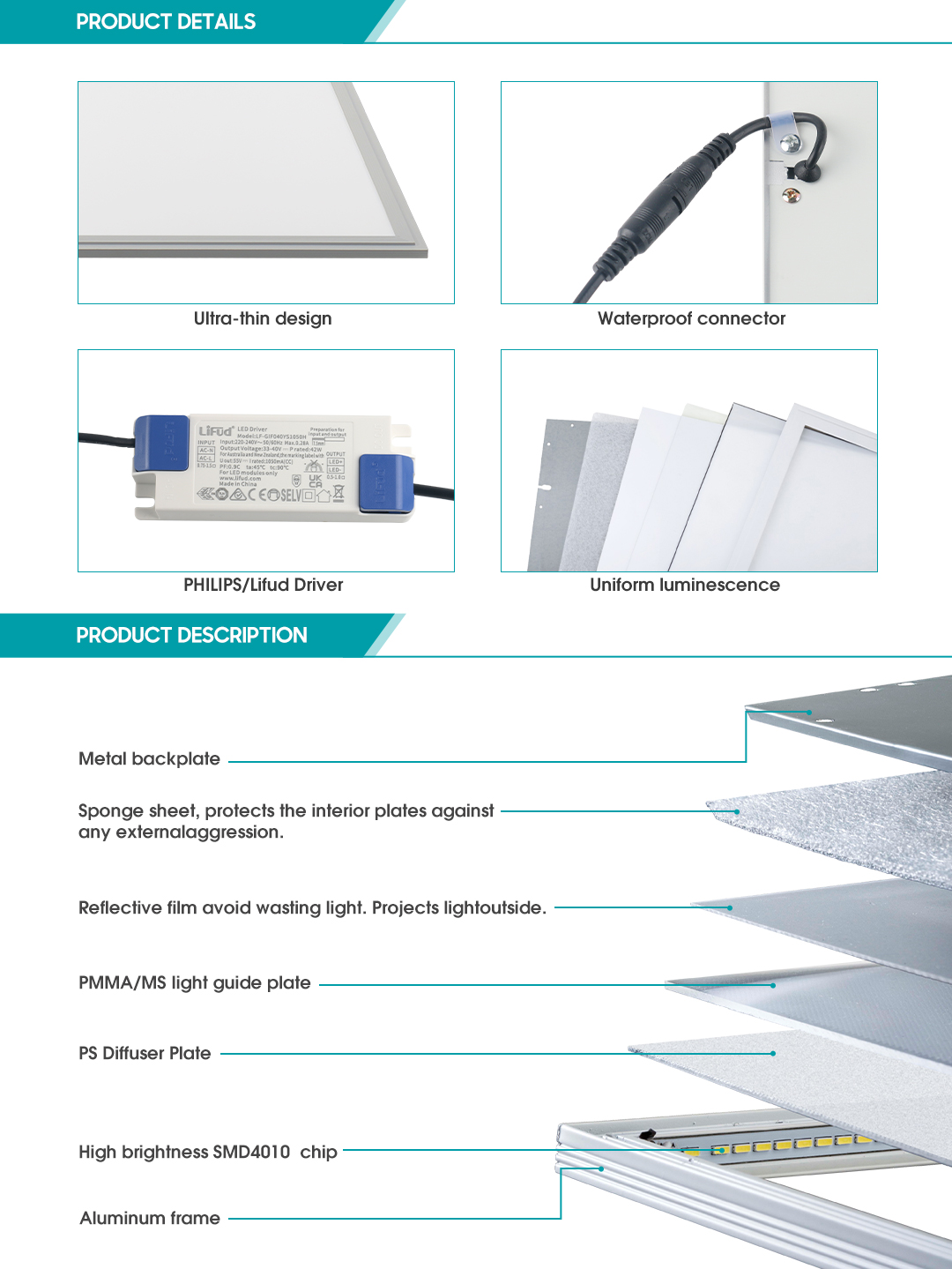

3. The frame is made of high-quality aviation aluminum, which has fast heat dissipation, no rust, corrosion resistance, bright metal surface and durable. The lampshade adopts PMMS/MS optical mask, the light is uniform and non-polarized, the light transmittance is high, the light conductivity is high, the light is soft and eye-friendly.

4. The ultra-thin lamp body design meets more installation needs. The integrated design makes the lamp body fit tightly, effectively preventing water vapor, mosquitoes and dust from entering the lamp body and making it easier to clean. Long-term use of the lampshade is not easy to yellow, which solves the common problem of panel lamp failure

5. Intelligent IC constant current drive power supply, stable performance and no video flicker, allowing you to have a comfortable and bright healthy lighting environment. Various sizes and specifications are available.
