SP-B-UGR

Anti-glare SP-B-UGR backlit panel light

Short Description:

Product parameters:

Product model: SP-B-UGR panel light
Product material: prism plate diffuser
LED: SMD 2835
Color rendering index: Ra80
Light efficiency: 100lm/w
UGR: <16


Product Detail

Product Tags

Product parameters

Model

Voltage

Dimension(mm)

Power

UGR

LED Chip

Luminous flux

SP-B-UGR-6060 85-265V 595x595x30 40W <16 SMD 2835 4000lm
SP-B-UGR30120 85-265V 295x1195x30 40W <16 SMD 2835 4000lm
SP-B-UGR60120 85-265V 595x1195x30 72W <16 SMD 2835 7200lm

product features

1.SP-B-UGR panel light is simple and elegant, fashionable and versatile. The prism plate diffuser can effectively disperse the light, making the light uniform and soft, reducing glare. High-quality metal back cover, fast heat dissipation, high temperature resistance, corrosion and rust resistance, not easy to deform, durable.
2.LED high-brightness lens light source, direct light output design, uniform lens refraction, larger irradiation area, large luminous area without dark area, bright light without glare. Color rendering index Ra≥80, restore true color.
3.The frame is made of high-quality aviation aluminum, sprayed with white paint, fast heat dissipation, no rust, corrosion resistance, strong and durable. ,
4. The SP-B-UGR panel light body adopts ultra-thin design, with a thickness of only 3cm, and multiple installation methods to meet more installation needs. Highly enclosed structure, the lamp body fits tightly, is dustproof, insect-proof, waterproof, and has a longer service life.
5. Philips/lifud driver power supply is optional, with stable performance, no video flicker, and plug-in wiring socket design, which is easy to use, fast and safe.

Product Use environment:

This SP-B-UGR panel light has a wide range of use scenarios and is commonly used in offices, banks, hospitals, laboratories, shopping malls, supermarkets, and other places.

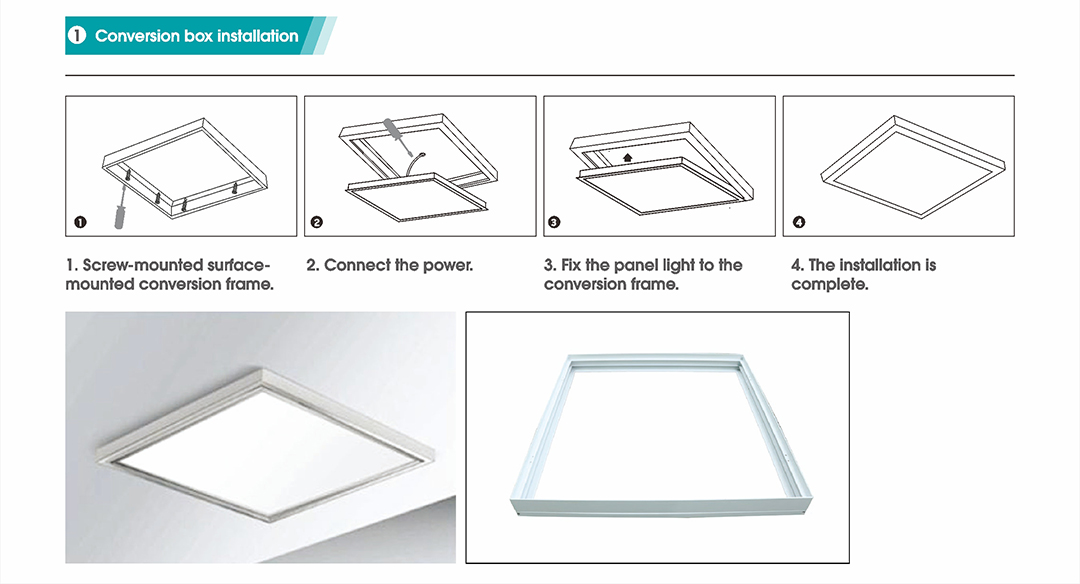

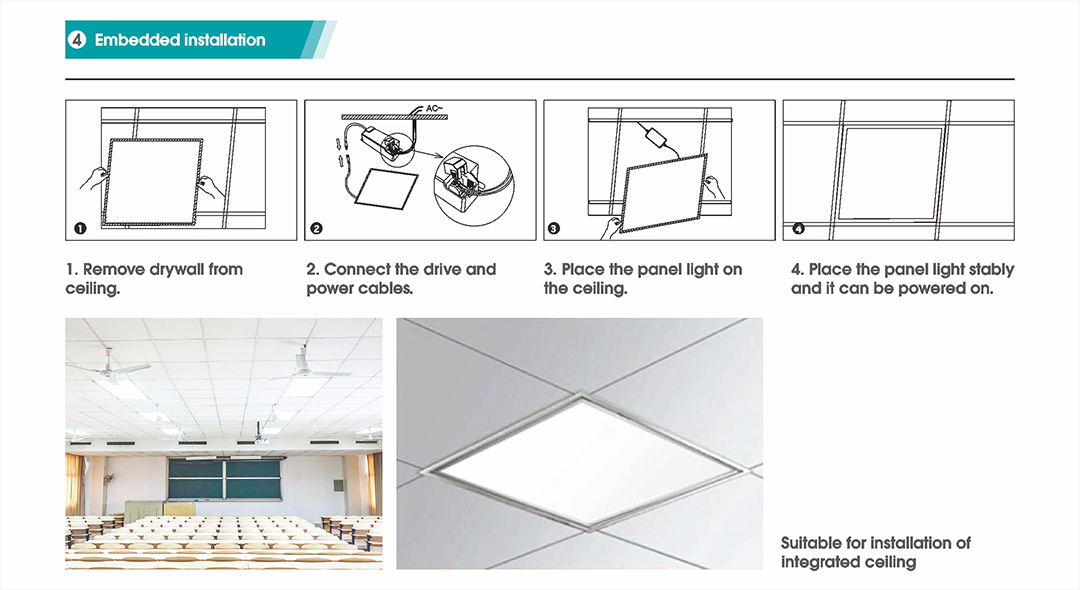

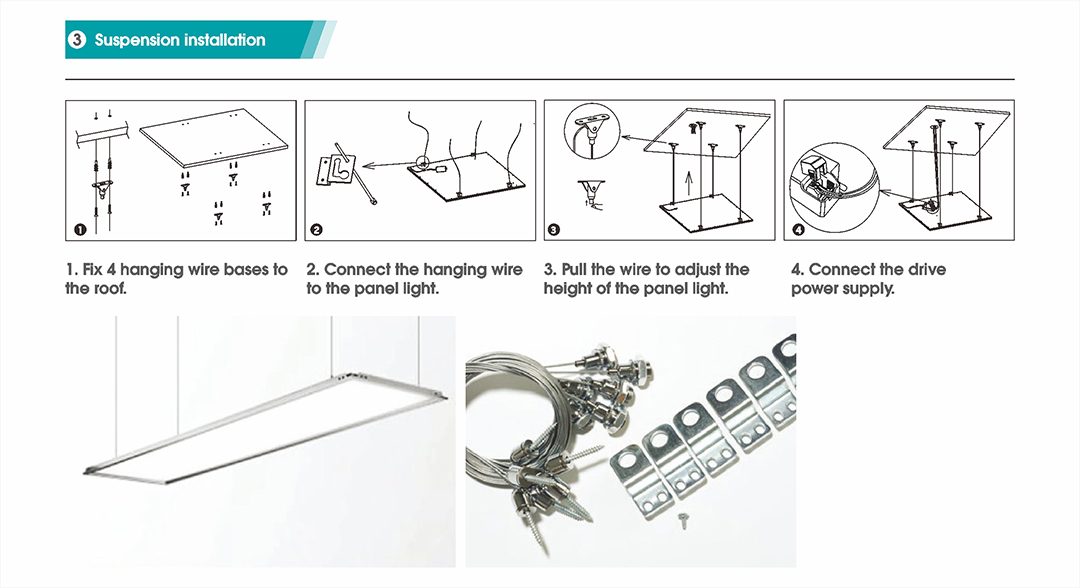

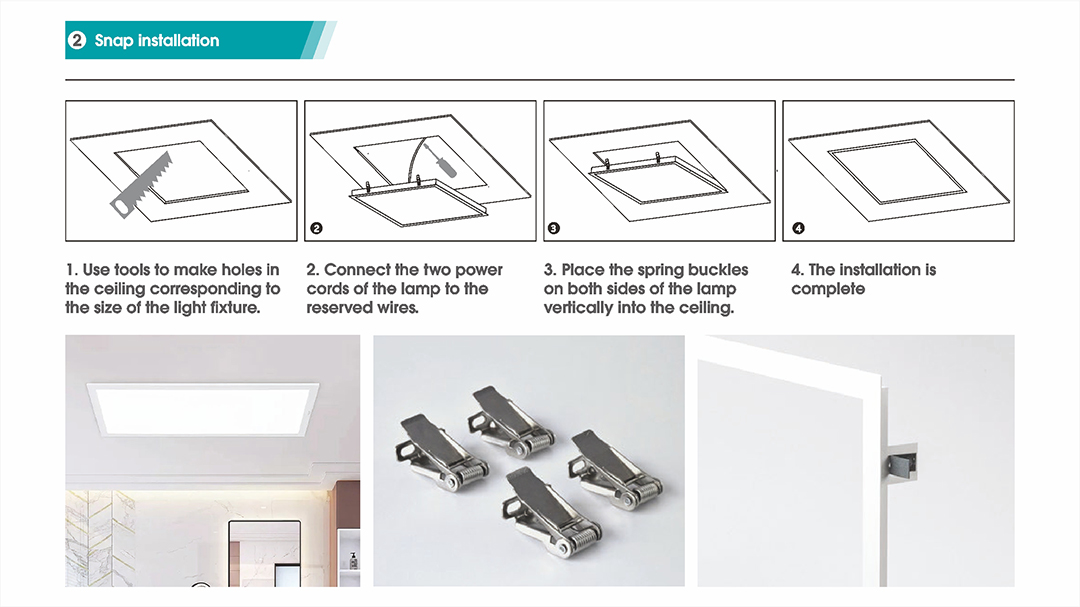

Product Installation

未标题-2_01 未标题-2_02 未标题-2_03 未标题-2_04
